VT machining provides CNC Sinker EDM Tungsten Copper for customers who need accurate, repeatable Tungsten Copper components. Because Tungsten Copper is combines tungsten strength with copper conductivity, we adapt the process to suit — controlling the variables that matter for this alloy.
CNC Sinker EDM Capability for Tungsten Copper
- Blind cavities & ribs
- Fine surface (VDI grades)
- Tolerance to ±0.005 mm
- Hardened tool steel
Tungsten Copper Material Data
| Density | 14.8–17.0 g/cm³ |
|---|---|
| Tensile strength | 790 MPa |
| Yield strength (0.2%) | 520 MPa |
| Hardness | 220 HB |
| Melting point | 1083 (Cu phase) °C |
| Thermal conductivity | 180–200 W/m·K |
| Thermal expansion | 8.3 ×10⁻⁶/K |
| Electrical conductivity | 42–48% |
| Machinability (C36000 = 100%) | 35% |
| Grades we run | W70Cu30, W75Cu25, W80Cu20, W85Cu15 |
Published typical values for W75Cu25. Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
Two phases with very different behaviour in one part. EDM gives a far more consistent result than milling on fine features, and it is the usual route for heat-spreader profiles.
How CNC Sinker EDM Tungsten Copper Works

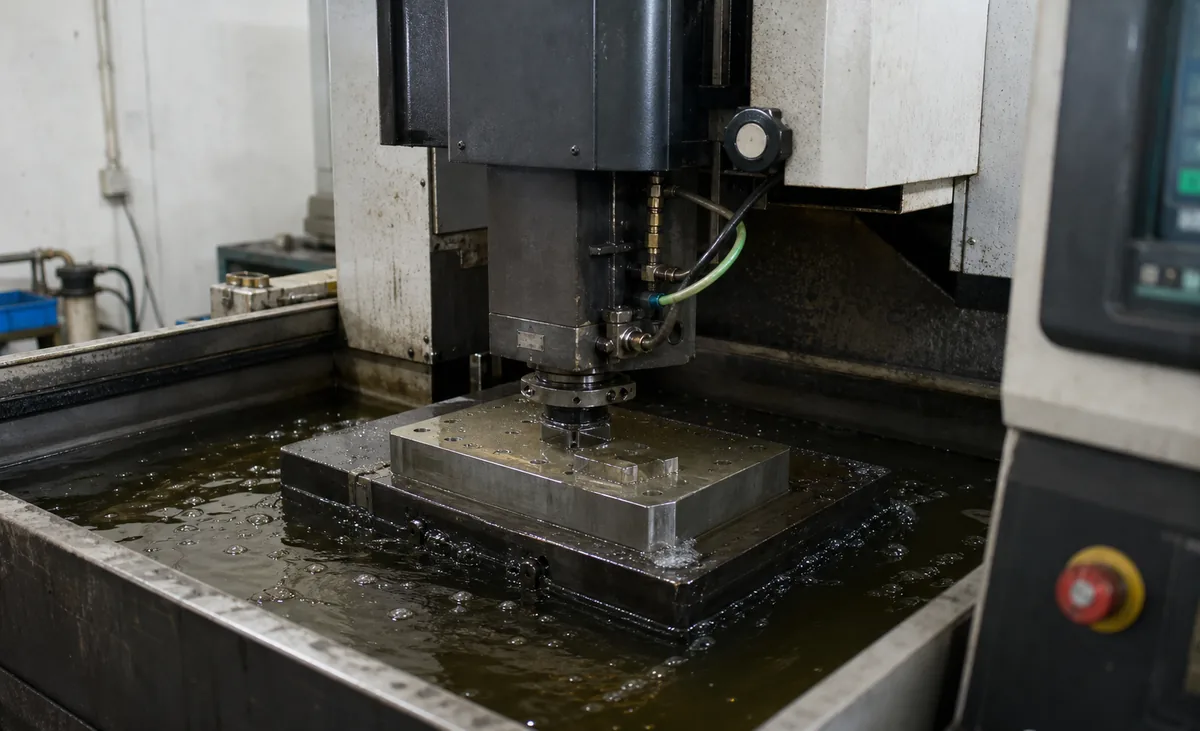

Material is removed from the Tungsten Copper workpiece by controlled electrical discharges across a dielectric gap, with no mechanical contact. Flushing, on/off pulse timing and electrode/wire feed are set to balance speed against surface finish.
Programming is driven directly by your 3D model or print. Work-holding, tool selection and the cutting strategy are planned around the critical features and the material before the first chip is cut. First-off inspection confirms the process is centred before production continues.
Achievable Tolerances for CNC Sinker EDM Tungsten Copper
| Feature | Standard | Precision |
|---|---|---|
| Profile dimension | ±0.010 mm | ±0.002 mm |
| Internal corner radius | 0.15 mm | 0.05 mm |
| Taper control over 50 mm | 0.02 mm | 0.005 mm |
| Surface finish (skim passes) | Ra 0.8 µm | Ra 0.2 µm |
| Recast layer | 10 µm | 2 µm (fine skim) |
| Start-hole diameter | 1.0 mm | 0.25 mm |
| Workpiece hardness | no limit (conductive) | no limit (conductive) |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
CNC Sinker EDM Quality & Inspection
We control quality throughout the process, not just at the end. In-process checks plus final inspection — including CMM where specified — keep every Tungsten Copper part to print. Inspection reports, material certificates and first-article documentation can be supplied on request.
Working with Tungsten Copper
As a material, Tungsten Copper is combines tungsten strength with copper conductivity. Our setup reflects the alloy's machinability so the finished part is accurate and free of avoidable defects.
We verify the exact grade and condition before machining, and traceable mill certs are available on request. We can work to your nominated material source or specification when required.
CNC Sinker EDM Tolerances & Surface Finish
EDM holds tolerances to roughly ±0.002–0.005 mm with no cutting force on the Tungsten Copper part, producing fine, controlled surface textures and sharp internal corners impossible to mill.
Exact achievable figures depend on the alloy, the feature size and the part geometry. Tell us which dimensions are critical and we will advise feasibility up front.
Secondary Operations & Finishing
Finished Tungsten Copper parts can move straight into secondary operations under one roof. Typical add-ons are deburring, passivation, anodising, plating, blasting, polishing and laser marking. We coordinate the whole chain so you receive complete, inspection-ready parts.
Design Tips for CNC Sinker EDM Tungsten Copper
We are happy to suggest design tweaks that improve manufacturability. EDM suits sharp internal corners, thin ribs and hardened Tungsten Copper that cannot be milled; allowing a small corner radius where possible speeds the cut. If you send your model early, we will return practical DFM feedback before you commit to production.
Applications of CNC Sinker EDM Tungsten Copper
Customers order CNC Sinker EDM Tungsten Copper components for everything from instrumentation to structural and functional assemblies. Whether you need a single prototype or recurring production volume, the same process discipline applies.
How to Order CNC Sinker EDM Tungsten Copper
Getting a quote is simple. Share your model, the material grade, your quantity and target tolerances. You receive a clear quotation with lead time and honest manufacturability feedback.
Parts We Have Run in Tungsten Copper
Three representative CNC Sinker EDM Tungsten Copper jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Injection mould cavity rib
- Material
- Tungsten Copper
- Size
- 0.25 mm wide × 8 mm deep
- Key callouts
- Width ±0.005 mm, VDI 21 finish
- Batch
- 45 pcs
Sinker EDM with a graphite electrode; a cutter that thin would break in the first pass.
Spline broach section
- Material
- Tungsten Copper
- Size
- Ø28 × 40 mm
- Key callouts
- Involute profile ±0.005 mm, Ra 0.4 µm
- Batch
- 60 pcs
Wire EDM after hardening to 62 HRC — the profile would not survive being cut soft and heat-treated.
Extrusion die
- Material
- Tungsten Copper
- Size
- 120 × 120 × 25 mm
- Key callouts
- Profile ±0.005 mm, internal corner R0.1 mm
- Batch
- 35 pcs
Cut in four skim passes; the first pass is speed, the last three are finish and accuracy.
Finishing Options for Tungsten Copper
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Sinker EDM Tungsten Copper
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Tungsten Copper grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Sinker EDM
Other Processes for Tungsten Copper
Send the drawing, the Tungsten Copper grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
What surface finish is achievable on Tungsten Copper with CNC Sinker EDM?
Surface finish on Tungsten Copper is controlled to your specification; we confirm the achievable Ra against your callout.
What material thickness or size range suits CNC Sinker EDM Tungsten Copper?
We machine Tungsten Copper across a broad size range; share your part envelope for confirmation.
Does CNC Sinker EDM Tungsten Copper require dedicated tooling?
Wire EDM needs no shaped tooling; sinker EDM uses a shaped electrode we produce in-house for your cavity.
What is CNC Sinker EDM Tungsten Copper and how is it done?
CNC Sinker EDM Tungsten Copper refers to sinker (die-sink) EDM burns a shaped electrode into metal to form precise cavities and blind features. Applied to Tungsten Copper — combines tungsten strength with copper conductivity — VT machining produces each part to your CAD drawing, selecting parameters from your tolerance, finish and quantity requirements.
Can you EDM-machine hardened Tungsten Copper?
Yes. EDM removes material by electrical discharge rather than cutting force, so hardened and difficult Tungsten Copper can be machined to fine detail and tight tolerance without distortion.
