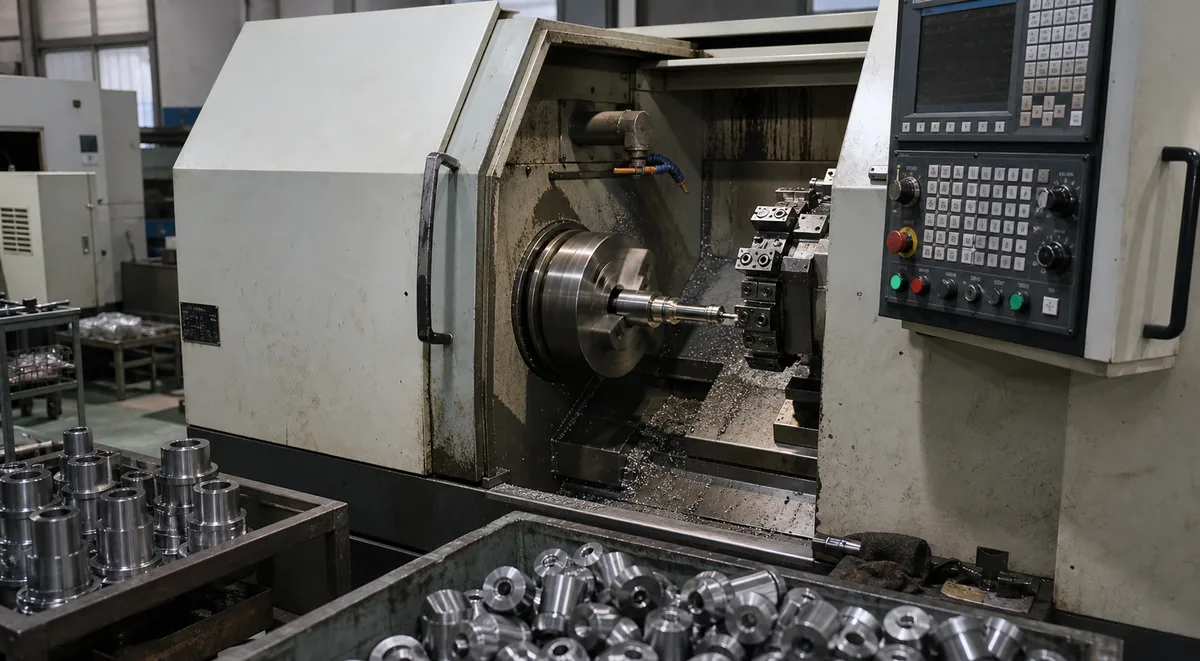

CNC Lathe Machining Tungsten Copper from VT machining delivers precision Tungsten Copper parts produced to your exact drawing. CNC lathe machining produces precision rotational parts with combined turning, facing, drilling and threading, and we tune every parameter to the behaviour of Tungsten Copper, which is combines tungsten strength with copper conductivity.
CNC Lathe Machining Capability for Tungsten Copper
- Live-tool capability
- Sub-spindle pickup
- OD/ID + cross features
- Diameter tolerance ±0.005 mm
Tungsten Copper Material Data
| Density | 14.8–17.0 g/cm³ |
|---|---|
| Tensile strength | 790 MPa |
| Yield strength (0.2%) | 520 MPa |
| Hardness | 220 HB |
| Melting point | 1083 (Cu phase) °C |
| Thermal conductivity | 180–200 W/m·K |
| Thermal expansion | 8.3 ×10⁻⁶/K |
| Electrical conductivity | 42–48% |
| Machinability (C36000 = 100%) | 35% |
| Grades we run | W70Cu30, W75Cu25, W80Cu20, W85Cu15 |
Published typical values for W75Cu25. Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
Two phases with very different behaviour in one part. EDM gives a far more consistent result than milling on fine features, and it is the usual route for heat-spreader profiles.
How CNC Lathe Machining Tungsten Copper Works
The Tungsten Copper bar or billet rotates in the spindle while single-point tools shape outer diameters, bores, faces, grooves and threads. Constant surface speed control keeps cutting conditions stable from large to small diameters.
Programming is driven directly by your 3D model or print. Work-holding, tool selection and the cutting strategy are planned around the critical features and the material before the first chip is cut. First-off inspection confirms the process is centred before production continues.
Achievable Tolerances for CNC Lathe Machining Tungsten Copper
| Feature | Standard | Precision |
|---|---|---|
| Outside diameter | ±0.05 mm | ±0.005 mm |
| Bore diameter | H9 | H6 |
| Length / shoulder position | ±0.10 mm | ±0.020 mm |
| Concentricity OD to ID | 0.05 mm TIR | 0.010 mm TIR |
| Roundness | 0.02 mm | 0.005 mm |
| Thread class | 6g / 2A | 4h / 3A |
| Surface finish, as turned | Ra 1.6 µm | Ra 0.4 µm |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
Secondary Operations & Finishing
Finished Tungsten Copper parts can move straight into secondary operations under one roof. Typical add-ons are deburring, passivation, anodising, plating, blasting, polishing and laser marking. We coordinate the whole chain so you receive complete, inspection-ready parts.
CNC Lathe Machining Quality & Inspection
We control quality throughout the process, not just at the end. In-process checks plus final inspection — including CMM where specified — keep every Tungsten Copper part to print. Inspection reports, material certificates and first-article documentation can be supplied on request.
Working with Tungsten Copper
As a material, Tungsten Copper is combines tungsten strength with copper conductivity. Our setup reflects the alloy's machinability so the finished part is accurate and free of avoidable defects.
We verify the exact grade and condition before machining, and traceable mill certs are available on request. We can work to your nominated material source or specification when required.
CNC Lathe Machining Tolerances & Surface Finish
Turned Tungsten Copper holds diameter tolerances to about ±0.005 mm with concentricity within 0.01 mm and good roundness. Turned finishes of Ra 0.4–0.8 µm are achievable with finishing passes and sharp tooling.
Exact achievable figures depend on the alloy, the feature size and the part geometry. Tell us which dimensions are critical and we will advise feasibility up front.
Design Tips for CNC Lathe Machining Tungsten Copper
We are happy to suggest design tweaks that improve manufacturability. Consistent diameters, standard thread forms and avoiding extremely long, slender features help Tungsten Copper turned parts stay concentric and economical. If you send your model early, we will return practical DFM feedback before you commit to production.
Applications of CNC Lathe Machining Tungsten Copper
Customers order CNC Lathe Machining Tungsten Copper components for everything from instrumentation to structural and functional assemblies. Whether you need a single prototype or recurring production volume, the same process discipline applies.
How to Order CNC Lathe Machining Tungsten Copper
Getting a quote is simple. Share your model, the material grade, your quantity and target tolerances. You receive a clear quotation with lead time and honest manufacturability feedback.
Parts We Have Run in Tungsten Copper
Three representative CNC Lathe Machining Tungsten Copper jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Precision shaft
- Material
- Tungsten Copper
- Size
- Ø16 × 240 mm
- Key callouts
- OD h6, concentricity 0.01 mm TIR, keyway 5 H9
- Batch
- 1,000 pcs / year
Turned between centres so both journals share one datum.
Valve seat
- Material
- Tungsten Copper
- Size
- Ø28 × 14 mm
- Key callouts
- Seat angle 45° ±0.1°, roundness 0.005 mm, Ra 0.2 µm
- Batch
- 800 pcs
Seat finished with a single-point diamond pass, no interruption.
Connector pin
- Material
- Tungsten Copper
- Size
- Ø3.0 × 24 mm
- Key callouts
- OD ±0.005 mm, straightness 0.02 mm over length
- Batch
- 20,000 pcs
Swiss-turned from bar with a guide bushing; nothing else holds Ø3 mm over 24 mm.
Finishing Options for Tungsten Copper
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Lathe Machining Tungsten Copper
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Tungsten Copper grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Lathe Machining
Other Processes for Tungsten Copper
Send the drawing, the Tungsten Copper grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
Which industries use CNC Lathe Machining Tungsten Copper parts?
CNC Lathe Machining Tungsten Copper parts are used across aerospace, medical, automotive, electronics, semiconductor and general industrial sectors — anywhere precise Tungsten Copper components are required.
What surface finish is achievable on Tungsten Copper with CNC Lathe Machining?
Surface finish on Tungsten Copper is controlled to your specification; we confirm the achievable Ra against your callout.
Why is Tungsten Copper a good choice for CNC Lathe Machining?
Tungsten Copper is combines tungsten strength with copper conductivity, which makes it well suited to CNC Lathe Machining. We tune the process to the alloy so the finished Tungsten Copper turning part meets your dimensional and functional requirements.
Does CNC Lathe Machining Tungsten Copper require dedicated tooling?
Most Tungsten Copper turning work uses standard cutting tools and CNC programs; dedicated fixtures are made only when geometry or volume requires them.
What is the typical lead time and minimum order for CNC Lathe Machining Tungsten Copper?
CNC Lathe Machining prototypes for Tungsten Copper can be produced quickly and scaled to series production. Send your drawing and quantity and we will advise lead time and any minimum order.
