Looking for reliable CNC Engraving Nickel? VT machining manufactures Nickel parts to tight tolerances and consistent quality. Nickel is corrosion and heat resistant, so the process is set up specifically for the material.
CNC Engraving Capability for Nickel
- Depth control to 0.02 mm
- Fine fonts & logos
- Serial / data-matrix marking
- Conical and ball engravers
Nickel Material Data
| Density | 8.89 g/cm³ |
|---|---|
| Tensile strength | 460 MPa |
| Yield strength (0.2%) | 148 MPa |
| Hardness | 110 HB |
| Melting point | 1435–1446 °C |
| Thermal conductivity | 70 W/m·K |
| Thermal expansion | 13.3 ×10⁻⁶/K |
| Electrical conductivity | 23% |
| Machinability (C36000 = 100%) | 30% |
| Grades we run | Nickel 200, Nickel 201, Alloy 400, Alloy 600 |
Published typical values for Nickel 200. Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
Gummy and work-hardening at once. Sharp tools, positive rake, and a deliberate depth of cut that stays under the hardened skin from the previous pass.
How CNC Engraving Nickel Works

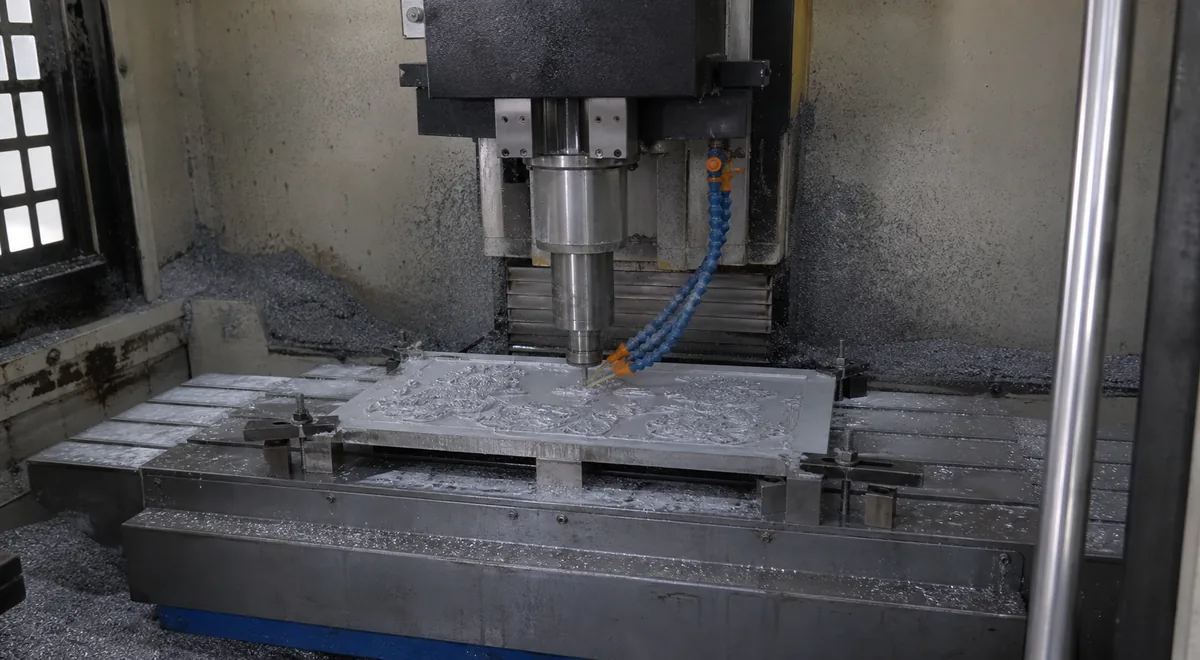

Rotating multi-flute cutters remove material as the Nickel workpiece is driven through programmed tool paths on 3-, 4- or 5-axis machining centres. Climb milling, step-over and depth-of-cut are set so chip load stays in the ideal band for the alloy.
Every job begins from your CAD model or 2D drawing. Fixturing and tool paths are planned so the most critical dimensions are produced in the most rigid, repeatable setup. Critical dimensions are checked on the first part and monitored through the run.
Achievable Tolerances for CNC Engraving Nickel
| Feature | Standard | Precision |
|---|---|---|
| Linear dimension (< 100 mm) | ±0.05 mm | ±0.010 mm |
| Linear dimension (100–300 mm) | ±0.10 mm | ±0.025 mm |
| Hole diameter (reamed) | H9 | H7 |
| True position of hole pattern | ±0.10 mm | ±0.025 mm |
| Flatness over 100 mm | 0.05 mm | 0.015 mm |
| Perpendicularity | 0.10 mm | 0.020 mm |
| Surface finish, as machined | Ra 1.6 µm | Ra 0.4 µm |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
Secondary Operations & Finishing
We complete Nickel components with the secondary steps your drawing calls for. We arrange heat treatment, surface treatment, marking and assembly as needed. Tell us the final spec and we will plan the full route so parts arrive ready to use.
Working with Nickel
Nickel offers a useful combination of properties: it is corrosion and heat resistant. Those characteristics shape how we approach milling — from tool and parameter selection to work-holding and coolant.
If your application is sensitive to alloy condition, we agree the specification in writing and document it. Stock is sourced from reputable suppliers so what you order is what you receive.
CNC Engraving Tolerances & Surface Finish
For CNC Engraving, dimensional and positional tolerances around ±0.01 mm are routine, tightening toward ±0.005 mm on precision setups. Surface finish on machined faces typically falls in the Ra 0.4–1.6 µm range depending on tooling and pass strategy.
Final tolerances are governed by the material's behaviour, wall thickness and overall stiffness. We give honest DFM feedback if a callout would be costly or better achieved another way.
Design Tips for CNC Engraving Nickel
A few design choices make a real difference to cost and quality. Generous internal radii, sensible pocket depth-to-width ratios and avoiding very thin unsupported walls all reduce cost and improve accuracy in Nickel. If you send your model early, we will return practical DFM feedback before you commit to production.
CNC Engraving Quality & Inspection
Consistent quality comes from disciplined process control. Critical dimensions on Nickel parts are checked in-process and verified at final inspection using calibrated instruments and, where required, CMM measurement. Full documentation — dimensional reports, mill certs, FAIR — is available when your programme needs it.
Applications of CNC Engraving Nickel
CNC Engraving of Nickel supports parts across aerospace, medical, automotive, electronics, semiconductor, energy and general industrial sectors. We scale from one-off prototypes to ongoing production while holding the same quality.
How to Order CNC Engraving Nickel
Ordering Nickel parts is straightforward. Provide the drawing, material, quantity and any certification needs. Our engineers reply — in English — with feasibility, pricing and a realistic lead time, usually within one business day.
Parts We Have Run in Nickel
Three representative CNC Engraving Nickel jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Sensor housing
- Material
- Nickel
- Size
- 86 × 54 × 22 mm
- Key callouts
- Pocket depth ±0.02 mm, bore H7, flatness 0.015 mm
- Batch
- 250 pcs / quarter
O-ring groove finished in the same setup as the sealing face so the two stay parallel.
Robot end-effector bracket
- Material
- Nickel
- Size
- 180 × 90 × 30 mm
- Key callouts
- Bore pair concentric within 0.02 mm, weight reduction pockets
- Batch
- 120 pcs
Pockets ganged so wall thickness never drops below 2 mm at the load path.
Vacuum chamber flange
- Material
- Nickel
- Size
- Ø180 × 20 mm
- Key callouts
- Knife-edge seal Ra 0.4 µm, bolt circle ±0.05 mm
- Batch
- 60 pcs
Sealing face finished last, then handled in gloves and bagged straight off the machine.
Finishing Options for Nickel
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Engraving Nickel
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Nickel grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Engraving
Other Processes for Nickel
Send the drawing, the Nickel grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
What is the typical lead time and minimum order for CNC Engraving Nickel?
CNC Engraving prototypes for Nickel can be produced quickly and scaled to series production. Send your drawing and quantity and we will advise lead time and any minimum order.
What surface finish is achievable on Nickel with CNC Engraving?
Surface finish on Nickel is controlled to your specification; we confirm the achievable Ra against your callout.
What tolerances can you hold for CNC Engraving Nickel?
Achievable tolerances for Nickel machining depend on the alloy, geometry and feature size. Milling holds positional and dimensional tolerances to around ±0.01 mm, tighter with precision setups. Exact figures are confirmed against your drawing callouts.
Can VT machining make custom Nickel parts to my drawing?
Yes. Nickel Nickel machining is made to order from your CAD/2D drawing. Share your geometry, material grade, tolerance and quantity and we will confirm feasibility, lead time and pricing.
What material thickness or size range suits CNC Engraving Nickel?
We machine Nickel across a broad size range; share your part envelope for confirmation.
Which industries use CNC Engraving Nickel parts?
CNC Engraving Nickel parts are used across aerospace, medical, automotive, electronics, semiconductor and general industrial sectors — anywhere precise Nickel components are required.
