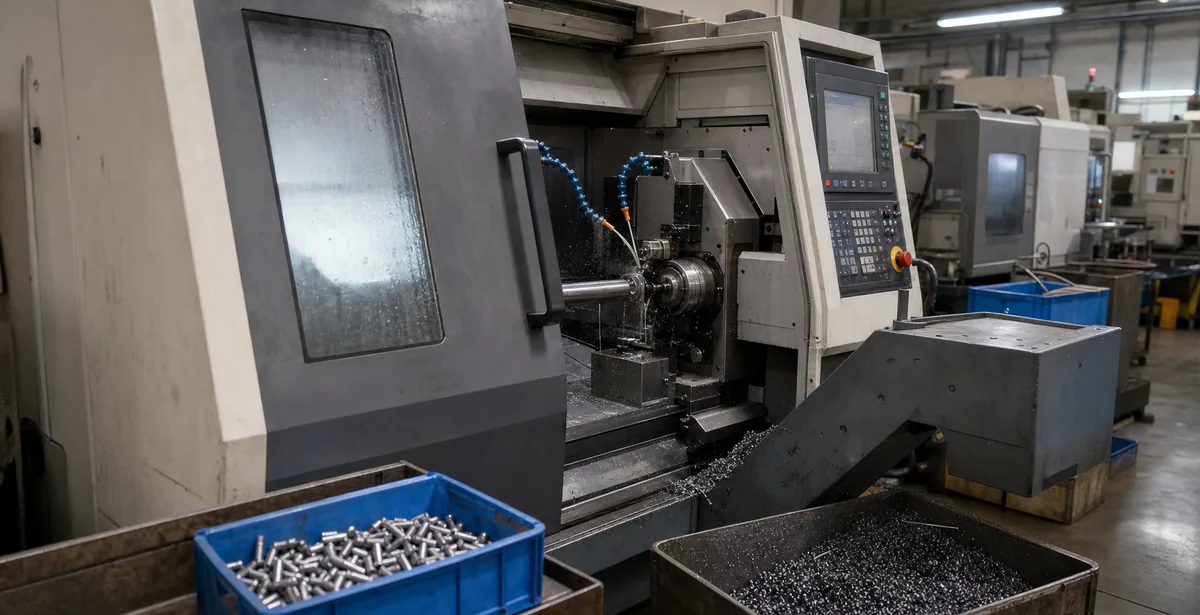

VT machining provides CNC Swiss Machining Stainless Steel for customers who need accurate, repeatable Stainless Steel components. Because Stainless Steel is corrosion resistant, strong, hygienic (304/316 grades), we adapt the process to suit — controlling the variables that matter for this alloy.
CNC Swiss Machining Capability for Stainless Steel
- Ø1–32 mm bar
- Slenderness without deflection
- Tolerance to ±0.003 mm
- High-volume small parts
Stainless Steel Material Data
| Density | 8.00 g/cm³ |
|---|---|
| Tensile strength | 515 MPa |
| Yield strength (0.2%) | 205 MPa |
| Hardness | 170 HB |
| Melting point | 1400–1450 °C |
| Thermal conductivity | 16.2 W/m·K |
| Thermal expansion | 17.3 ×10⁻⁶/K |
| Electrical conductivity | 2.4% |
| Machinability (C36000 = 100%) | 45% |
| Grades we run | 303, 304/304L, 316/316L, 321, 410, 416, 420, 17-4PH, 2205 duplex |
Published typical values for 304. Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
It work-hardens the moment a tool dwells. Constant feed and positive-rake tooling; a rubbing pass leaves a glazed skin the next tool cannot get through.
How CNC Swiss Machining Stainless Steel Works
The Stainless Steel bar or billet rotates in the spindle while single-point tools shape outer diameters, bores, faces, grooves and threads. Constant surface speed control keeps cutting conditions stable from large to small diameters.
We start from your supplied geometry and tolerance scheme. The setup is designed to minimise re-clamping, which protects positional accuracy across features. A first article is verified against the drawing before the balance of the batch is released.
Achievable Tolerances for CNC Swiss Machining Stainless Steel
| Feature | Standard | Precision |
|---|---|---|
| Outside diameter | ±0.05 mm | ±0.005 mm |
| Bore diameter | H9 | H6 |
| Length / shoulder position | ±0.10 mm | ±0.020 mm |
| Concentricity OD to ID | 0.05 mm TIR | 0.010 mm TIR |
| Roundness | 0.02 mm | 0.005 mm |
| Thread class | 6g / 2A | 4h / 3A |
| Surface finish, as turned | Ra 1.6 µm | Ra 0.4 µm |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
CNC Swiss Machining Quality & Inspection
Quality is built in, not inspected on. We monitor key features during the run and confirm them at final inspection, with CMM verification available for tight tolerances. We provide the inspection and traceability records your quality system requires.
Working with Stainless Steel
Stainless Steel is corrosion resistant, strong, hygienic (304/316 grades). We translate those properties into a process plan: the right tooling, speeds, feeds and fixturing for the alloy.
Where the grade, temper or heat-treat condition matters to performance, we confirm it with you and can supply material certificates. Material is procured to recognised standards for consistent, repeatable results.
CNC Swiss Machining Tolerances & Surface Finish
Turned Stainless Steel holds diameter tolerances to about ±0.005 mm with concentricity within 0.01 mm and good roundness. Turned finishes of Ra 0.4–0.8 µm are achievable with finishing passes and sharp tooling.
The tightest tolerances are reserved for the features your drawing flags as critical. Share your tolerance scheme and we will confirm what is realistic before quoting.
Secondary Operations & Finishing
Most Stainless Steel parts need some finishing, which we manage in-house or through vetted partners. Options include deburring and edge-breaking, heat treatment, surface grinding, polishing, and plating or anodising for corrosion resistance and appearance. Give us the finished-part requirement and we will sequence every operation correctly.
Design Tips for CNC Swiss Machining Stainless Steel
Small design adjustments often cut cost and lead time. Consistent diameters, standard thread forms and avoiding extremely long, slender features help Stainless Steel turned parts stay concentric and economical. If you send your model early, we will return practical DFM feedback before you commit to production.
Applications of CNC Swiss Machining Stainless Steel
Stainless Steel parts made this way are found throughout aerospace, medical, automotive, electronics and industrial equipment. Prototype, bridge and production volumes are all welcome.
How to Order CNC Swiss Machining Stainless Steel
Starting your project takes one email. Send your CAD or 2D drawing, the Stainless Steel grade and condition, the quantity and any finish or inspection requirements. We respond quickly with price, lead time and any DFM notes, in clear English.
Parts We Have Run in Stainless Steel
Three representative CNC Swiss Machining Stainless Steel jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Valve seat
- Material
- Stainless Steel
- Size
- Ø28 × 14 mm
- Key callouts
- Seat angle 45° ±0.1°, roundness 0.005 mm, Ra 0.2 µm
- Batch
- 800 pcs
Seat finished with a single-point diamond pass, no interruption.
Precision shaft
- Material
- Stainless Steel
- Size
- Ø16 × 240 mm
- Key callouts
- OD h6, concentricity 0.01 mm TIR, keyway 5 H9
- Batch
- 1,000 pcs / year
Turned between centres so both journals share one datum.
Threaded fitting
- Material
- Stainless Steel
- Size
- Ø22 hex × 38 mm
- Key callouts
- G3/8" thread class 4h, bore H8, sealing face Ra 0.8 µm
- Batch
- 2,500 pcs
Run on a sub-spindle lathe so the back face is finished without a second setup.
Finishing Options for Stainless Steel
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Citric passivation | — | ASTM A967 / AMS 2700, removes free iron |
| Electropolish | 5–25 µm removed | Ra improves by roughly half, hygienic surface |
| Brushed / grained | Ra 0.4–1.6 µm | No. 4 finish, directional |
| PVD coating | 2–5 µm | TiN, TiCN for wear surfaces |
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Swiss Machining Stainless Steel
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Stainless Steel grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Swiss Machining
Other Processes for Stainless Steel
Send the drawing, the Stainless Steel grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
What is CNC Swiss Machining Stainless Steel and how is it done?
CNC Swiss Machining Stainless Steel refers to swiss-type machining guides bar stock through a sliding headstock for high-accuracy small, slender parts. Applied to Stainless Steel — corrosion resistant, strong, hygienic (304/316 grades) — VT machining produces each part to your CAD drawing, selecting parameters from your tolerance, finish and quantity requirements.
How clean are the edges produced by CNC Swiss Machining on Stainless Steel?
Machined Stainless Steel edges are clean and to specification; edge-break or deburring is added when your drawing calls for it.
What material thickness or size range suits CNC Swiss Machining Stainless Steel?
Turned Stainless Steel parts are produced from bar or chuck stock across a wide diameter range.
Does CNC Swiss Machining Stainless Steel require dedicated tooling?
Most Stainless Steel turning work uses standard cutting tools and CNC programs; dedicated fixtures are made only when geometry or volume requires them.
