Micro CNC Machining: Step-by-Step Operation Guide

Key Takeaways

• Micro CNC machining requires spindle speeds of 20,000–50,000 RPM and feed rates as low as 0.002 mm/tooth for tools under 0.5 mm to prevent breakage.
• Daily cleaning of micro chips and weekly inspection of tool holders prevent premature wear and ensure consistent accuracy in micro-scale work.
• Tool runout below 5 microns is essential to avoid premature tool failure and achieve fine surface finishes on small metal components.
• Common issues like surface roughness or tool breakage are often due to incorrect chip loads or inadequate coolant delivery, fixable by parameter adjustment.
• Routine calibration of machine axes and spindle runout checks maintain the micron-level tolerances needed for reliable micro CNC production.

It’s early morning on the shop floor. A technician approaches the micro CNC machining center, where a tiny brass component no larger than a grain of rice awaits its final precision cuts. For operators and designers working with small metal parts, knowing how to properly run this equipment is the difference between consistent quality and costly scrap.

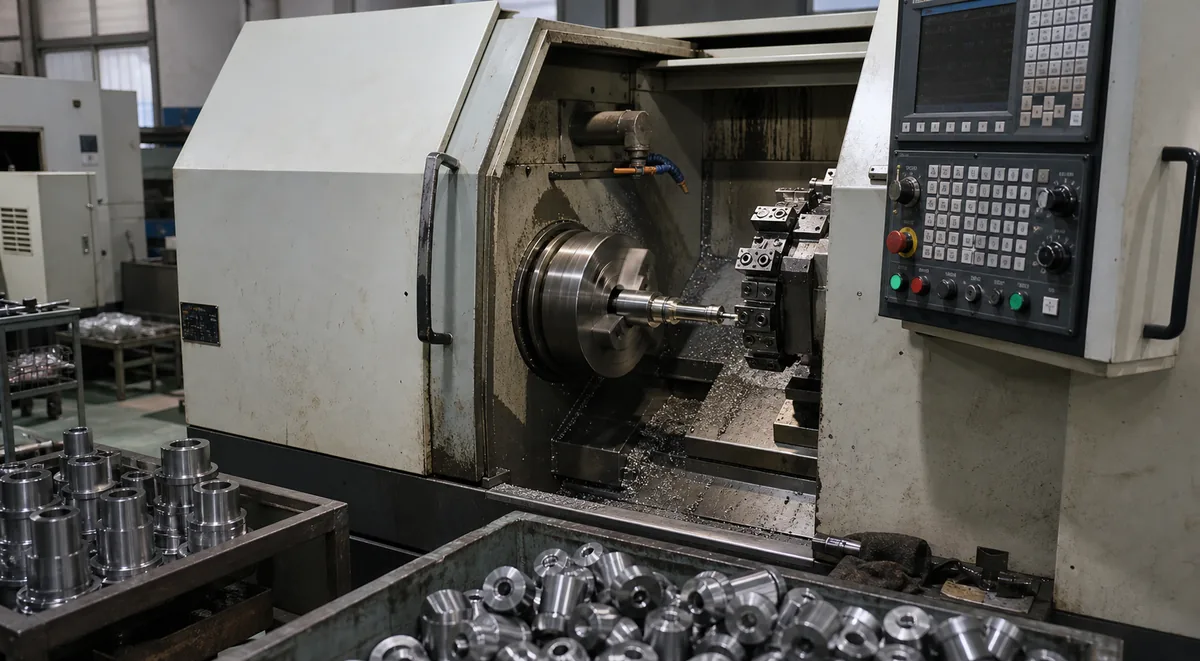

What Micro CNC Machining Does and Where It Fits in the Process

Micro CNC machining, often called CNC micro machining, is a subtractive manufacturing process that removes material from small metal workpieces using computer-controlled cutting tools, achieving extremely high precision and fine surface finishes. Unlike conventional CNC, micro machines handle components often no larger than a few millimeters, with features down to the micron scale. In the overall manufacturing workflow, it sits after the design and CAM programming phase, typically producing prototypes, tooling inserts, or final parts where conventional machining cannot meet the tight tolerances. Common applications include miniature medical implants, electronic connectors, and micro aerospace components.

Before You Start: Setup, Power, Safety, and Site Requirements

A successful micro CNC operation begins long before the first cut. The environment plays a critical role—temperature fluctuations or vibrations can ruin a part. Ensure your machine is installed on a sturdy, vibration-damped surface in a climate-controlled room (typically around 20°C with minimal variation). Verify that the electrical supply meets the machine’s specifications; micro machines often require clean, stable power to prevent spindle speed fluctuations. Compressed air, if used for spindles or clamping, must be dry and filtered to avoid contaminating delicate surfaces.

Safety is paramount. Operators should wear appropriate PPE including safety glasses and, depending on the material, particulate masks. Ensure all machine guards are in place and that emergency stop buttons are accessible and tested. Due to the small cutting tools, inspect them under a microscope before loading—even minor wear or chips can cause tool breakage and part scrap. Also, confirm that the CAM program has been simulated and checked for collisions, as the tiny clearances leave no room for error.

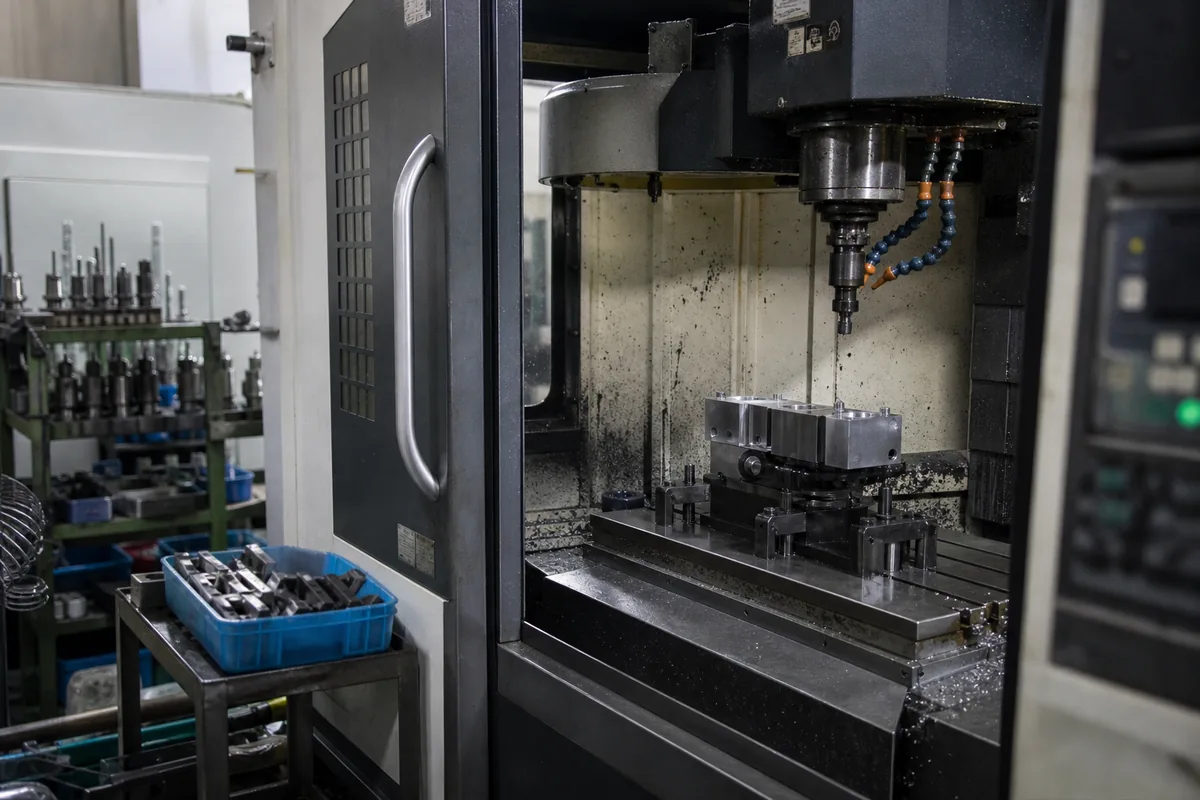

Step-by-Step Operation

Follow these steps to reliably produce small metal components:

1. Workpiece Preparation and Fixturing: Clean the workpiece thoroughly. Mount it in a precision fixture or vise, ensuring it is square and securely clamped. For micro parts, even a few microns of misalignment can scrap the piece.
2. Tool Loading and Setting: Load the appropriate micro end mill or drill. For tools under 1 mm, use a collet or shrink-fit holder. Measure the tool length offset precisely using a tool setter or touch-off method, compensating for runout.
3. Program Loading and Verification: Transfer the G-code to the machine. Review the program on the control display, verifying toolpaths, speeds, and feeds match the CAM simulation. Many operators run the program above the workpiece (with Z offset raised) to visually confirm movements.
4. Work Coordinate System Setup: Set the part zero point relative to the machine’s home. This often involves using a touch probe or edge finder carefully, as probe tips can be large relative to the part. Some machines use contact or laser sensors for precise alignment.
5. Dry Run and Coolant Check: Run a complete dry cycle with no cutting (spindle off or above the part) to ensure all motions are smooth and error-free. For coolant, use a fine mist or micro-droplet system to avoid flooding tiny tools; ensure it’s directed at the cutting zone.
6. First Cut and Monitoring: Start machining with conservative feed rates. Monitor spindle load and sound; unusual vibrations can indicate tool deflection or poor chip evacuation. Pause if necessary to clear chips with a gentle air blast or vacuum.
7. In-Process Inspection: After the first few passes, stop the machine to measure critical dimensions using a microscope or laser micrometer. This step confirms that the tool is cutting to size and that thermal expansion isn’t affecting accuracy. Make offsets if needed.
8. Completion and Cleanup: Once the cycle ends, carefully remove the part. Deburr if necessary under magnification. Clean the machine thoroughly—micro chips can interfere with future setups. Document any deviations for quality records.

Best-Practice Settings for Quality and Yield

Micro CNC machining demands parameter ranges that prevent tool breakage while delivering fine surface finishes. Spindle speed typically falls between 20,000 and 50,000 RPM for micro tools with diameters under 0.5 mm. For sub-0.2 mm cutters, speeds may reach 60,000 RPM or higher, depending on the machine’s capability. Feed rates should be conservative—around 0.002 to 0.005 mm per tooth—to avoid chipping the cutter’s delicate edges. Axial depth of cut rarely exceeds 0.05 mm per pass; radial engagement is often less than 10% of the tool diameter. These minimal engagements ensure efficient chip evacuation and limit cutting forces.

Tool holder selection plays a critical role. Hydraulic or shrink-fit chucks minimize runout, keeping it under 5 microns. Even slight runout in a micro end mill multiplies effective chip load on one tooth, leading to premature failure. When roughing, step down in Z with consistent chip thinning to maintain cutter health. For finishing, reduce stepover to 0.02–0.05 mm for mirror-like surfaces on metals like brass or aluminum. With harder alloys, carbide tools with advanced coatings (TiAlN, AlCrN) extend tool life, though sharp uncoated micro-grain carbide often performs best in non-ferrous materials because coating thickness can dull the cutting edge.

Coolant delivery is equally important. A fine mist or micro-droplet system directed precisely at the cut zone lubricates without flooding. This minimizes thermal shock to the tiny tool while carrying away micro chips. Check that air pressure is sufficient to overcome the mist nozzle’s restriction and that the lubricant concentration aligns with the workpiece material—typically 5–10% for general metals. Avoid excessive coolant flow; pooling can redeposit chips and cause re-cutting, destroying surface finish.

Finally, maintain a stable ambient temperature. Micro machines can be sensitive to thermal drift; allow the machine and coolant to reach thermal equilibrium before taking critical cuts. Using glass scales for positional feedback improves accuracy over longer runs. Document these parameters for each job to build a reliable repeatable process, a practice that is fundamental across all CNC Precision Machining.

Routine Maintenance Schedule and Common Wear Parts

Consistent upkeep keeps micro CNC machines holding tight tolerances. Shops should integrate daily, weekly, and monthly tasks.

• Daily: Remove micro chips from the work area, fixturing, and chip tray using a vacuum and soft brush. Wipe down exposed linear rails and ball screws to prevent abrasive wear. Check coolant level and concentration; refill and adjust as needed. Inspect the mist nozzle for blockage—a clogged nozzle starves the tool of lubrication.
• Weekly: Inspect tool holders and collets for bell-mouthing or fret marks that indicate fretting wear. Measure spindle taper runout with a test bar; deviations beyond 3 microns warrant cleaning or replacement. Examine way wipers and replace if torn. Verify that the machine’s air filter is clean to maintain stable air pressure for the mist system.
• Monthly: Perform axis calibration by running a ballbar test or using a laser interferometer, if available. These checks reveal backlash, squareness errors, and servo mismatch that degrade micro-machining accuracy. Lubricate ballscrews and linear guides according to the manufacturer’s schedule—typically with light grease or oil. Inspect spindle bearings for unusual vibration using a vibration analyzer; an upward trend in vibration amplitude suggests impending bearing failure. Check all safety interlocks and e-stop functionality.

Common wear parts on micro CNC machines include micro cutting tools themselves—they are consumable by nature. Tool holders and collets wear due to repeated clamping cycles. Spindle bearings have a finite lifespan, often several thousand hours depending on speed and load. Belts in spindle drives can stretch or crack. Mist system O-rings and seals degrade over time, causing pressure loss. Keep a stock of these items to minimize downtime.

Troubleshooting: 3 Common Problems and Their Fixes

Even with careful setup, issues arise. Here are frequent problems and their likely causes.

1. Poor Surface Finish
   Causes: Excessive tool runout, dull tool, incorrect feed/speed, inadequate coolant, or built-up edge.
   Fixes: Measure and correct runout; replace tool; reduce feed, increase speed, or adjust depth of cut; verify coolant nozzle direction and concentration; for aluminum, use sharper tools or a different coating to avoid galling.
2. Tool Breakage
   Causes: Excessive chip load, chip packing in flutes, extreme runout, hitting a hard spot, or coolant interruption.
   Fixes: Reduce feed per tooth; use peck cycle or air blast to clear chips; check tool holder and spindle runout; examine workpiece for inclusions; ensure mist is consistent.
3. Dimensional Inaccuracy
   Causes: Thermal expansion of machine or workpiece, worn ballscrew or backlash, incorrect tool compensation, fixture movement.
   Fixes: Allow warm-up cycle; recalibrate axis; re-measure tool length and diameter offsets; improve fixture rigidity; apply temperature compensation if available.
4. Excessive Burrs
   Causes: Dull tool edges, high feed rate, or improper exit path.
   Fixes: Use sharp tools; reduce feed; program a small climb-milling pass at the exit to shear off the burr; add a deburring tool path if necessary.
5. Chatter and Vibration
   Causes: Overly long tool stickout, spindle imbalance, loose workholding, or resonance at certain RPMs.
   Fixes: Shorten tool stickout where possible; balance tool holder assembly; tighten clamps; adjust spindle speed to avoid harmonics; use dampened tool holders.
