CNC Machining for Precision Engineering: Design & Process Considerations

Key Takeaways

• Design for precision from the start by specifying functional datums and applying geometric tolerancing with MMC/LMC modifiers where appropriate.
• Material choice directly influences distortion, tool wear, and achievable surface finish—stress-relieved stock and stable alloys are foundational for micron-level work.
• Constant radial tool engagement, adaptive clearing strategies, and dedicated finishing passes prevent deflection and thermal drift in critical features.
• Workholding must distribute clamping force evenly; soft jaws, vacuum fixtures, and light high-speed toolpaths protect thin-walled and delicate geometries.
• A closed-loop process combining in-situ probing, temperature control, and post-machining metrology turns individual operations into a repeatable precision system.

How can you consistently produce precision CNC machining parts that meet micron-level tolerances without blowing past budget and lead time? The answer isn’t found in a single setting or toolpath—it’s in the tight interplay between upfront design decisions and the downstream process. In CNC machining for precision engineering, every choice, from the material you select to the way you define datums, either adds accuracy or erodes it. This article walks through the most impactful design considerations and the process fundamentals that together enable repeatable, high-accuracy results.

Design Considerations That Impact Precision

Precision begins long before the first chip flies. A design built with the manufacturing process in mind avoids the delays, rework, and cost overruns that plague projects when feature calls exceed a machine’s natural capabilities. For a precision CNC machining part, tolerances are not just numbers on a drawing—they are promises that the process must keep. Overspecifying them across every surface forces machinists into unnecessary fine-screen strategies, driving up cycle time and tool wear. Instead, identify the truly critical faces, bores, and interfaces, and leave non-functional areas at standard industrial tolerances.

Feature geometry directly controls how well a part can be held, cut, and measured. Deep, narrow pockets and sharp internal corners demand tools that deflect under load, compromising surface finish and dimensional accuracy. Whenever possible, increase internal radii to match readily available tooling; this doesn’t just improve precision—it lets shops use rigid, shorter cutters that chatter less. Similarly, slot depths should stay under four times the slot width to prevent tool wander. Think about how the part will be fixtured during the first and subsequent operations. Adding clamp-friendly flat surfaces or reference edges—even if they are later machined away—gives the setup technician a reliable origin, reducing alignment errors that stack as features are added.

Material selection also governs precision. Coarse-grained alloys and castings with internal stresses can warp dramatically as metal is removed, while free-machining grades and stress-relieved stock stay stable. Discussing material options early with your machining partner helps avoid surprises; a slightly higher material cost often pays for itself in reduced scrap and fewer re-clamping steps.

Process Essentials for Consistent Precision

Even the most thoughtfully designed part can fail if the machining process isn’t tuned for accuracy. A shop’s ability to deliver a precision CNC machining part hinges on a chain of interdependent steps, each of which can introduce variation. Machine calibration is the foundation. Linear motion systems, spindle runout, and volumetric accuracy must be verified regularly—preferably with laser interferometry—so that control software can compensate for any residual errors. Without this, no amount of CAD finetuning will save the part.

Tool selection and management are equally critical. Cutting tools must be sharp, run true, and be held in balanced toolholders. Any runout at the tool tip is magnified at the cutting edge, directly affecting dimensions. For tight-tolerance bores, reaming or boring after drilling provides the true position and surface finish that an endmill alone cannot. In milling, using an adaptive clearing strategy with a consistent radial engagement prevents sudden tool loading that causes deflection and wall taper.

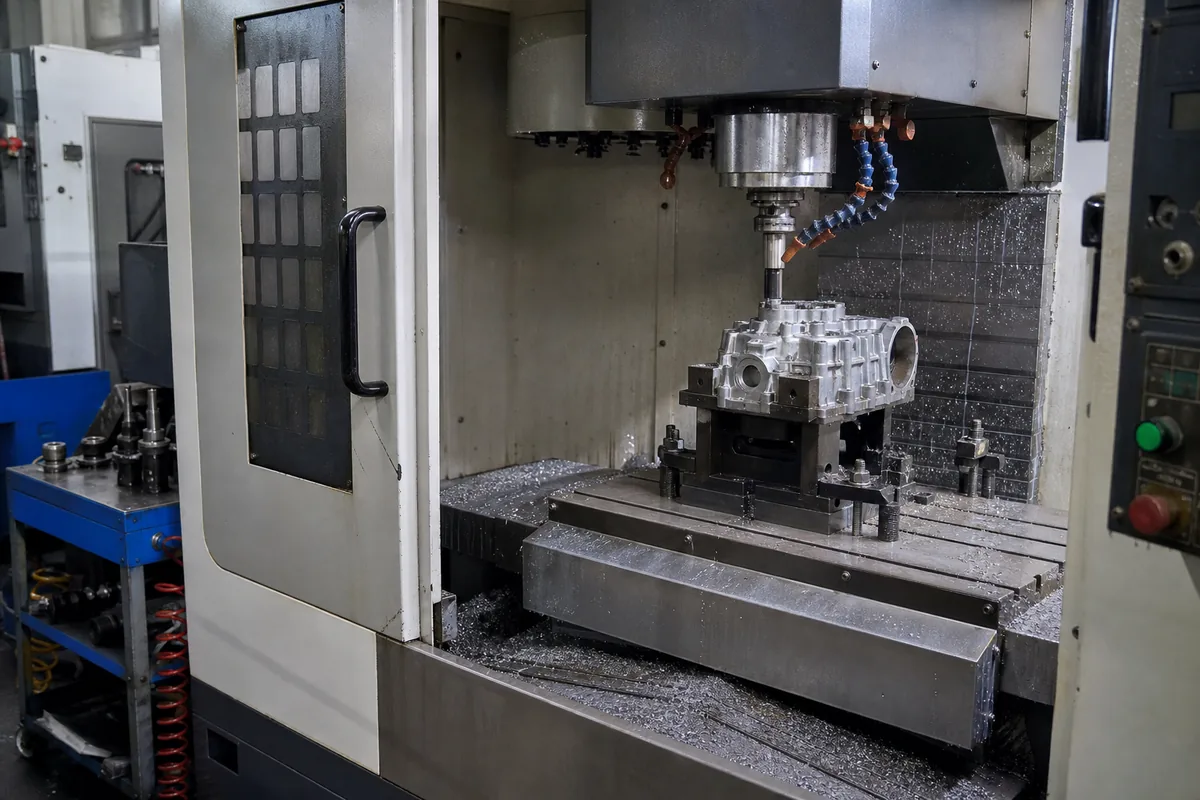

Workholding strategy makes or breaks a precision run. A part that shifts during machining, vibrates, or is distorted by clamping force will never measure right. Vacuum, dovetail, or soft jaw fixtures that spread grip pressure—paired with light, high-speed toolpaths—keep thin-walled sections stable. Temperature is a silent source of error: heat generated during cutting expands the workpiece and machine structure, then as things cool, dimensions move. Flood coolant, chip evacuation, and allowing soak time all help bring the final part into spec. A controlled shop environment, with stable ambient temperature and humidity, further narrows the window of thermal drift.

Material Selection and Process Tuning in Practice

Moving from general stability strategies to specific material behaviour is where many shops either gain or lose microns. In cnc machining for precision engineering, the alloy’s thermal expansion coefficient, hardness, and residual stress profile become design constraints, not afterthoughts. A precision cnc machining part machined from 6061-T6 aluminium will behave predictably under coolant, while the same geometry in 17-4 PH stainless risks slight distortion after roughing unless a stress‑relief pause is built into the process. Hardened tool steels and superalloys—Inconel, titanium, Kovar—demand sharp, coated carbide or ceramic tooling and shallower depths of cut to hold surface integrity and avoid work hardening that drifts a bore by a tenth.

Process tuning often separates successful first articles from iterative failures. Run‑off tabs on delicate saw‑cut blanks prevent clamping‑induced warp that would otherwise telegraph into a finished surface. For complex housings, sequential roughing, semi‑finishing, and finishing—interspersed with in‑process dimensional checks—lets stress redistribute evenly. Many high‑precision runs now incorporate in‑situ probing cycles that feed offset corrections back to the controller before the final finish pass. Post‑machining treatments such as vibratory deburring, low‑temperature thermal cycling, and even cryogenic stabilization further lock in dimensional stability, especially for optical mounts and metrology frames where drift over time is unacceptable.

Metrology closes the loop. A coordinate measuring machine programmed to the same datum structure defined on the print verifies not just tolerances but functional relationships—parallelism, concentricity, runout. When the cycle includes a correlation between the CMM report and tool wear data, the next batch starts with updated compensation, turning the entire cell into a self‑improving precision system.

Building a Repeatable Precision Workflow

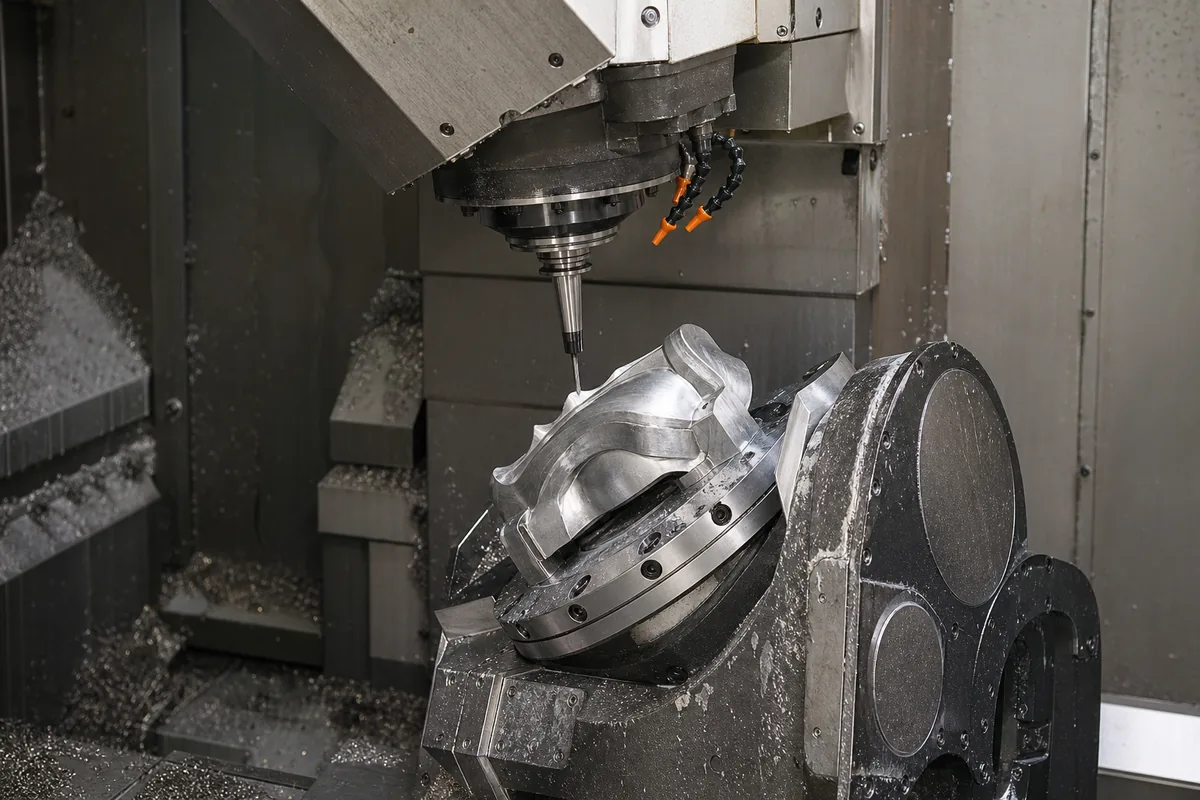

True repeatability emerges when design, process, and verification are treated as one continuous thread. The engineer who specifies a positional tolerance with an MMC modifier enables functional gauging and cuts inspection time, while the programmer who maps part features to the machine’s kinematic envelope avoids awkward setups that degrade accuracy. Collaborating with a shop that offers advanced CNC precision machining capabilities, including multi‑axis and Swiss‑type turning, gives designers a wider palette of achievable geometries without sacrificing tolerance. In fact, many high‑value assemblies now begin with a manufacturer’s design‑for‑manufacturing review that catches stack‑up issues before tool steel is ever cut.

Shops pushing the limits of precision engineering manage more than machine coordinates; they control the environment, coolant chemistry, and even the timing of tool changes to keep temperature curves flat. For mission‑critical precision cnc machining part programs, investing in robust data collection—traceable measurement records, process capability indices—yields the insight needed to react before a batch drifts out of spec. The next step is not merely to machine to a drawing, but to build a process so inherently stable that quality is engineered into the cycle, not inspected in afterward.
