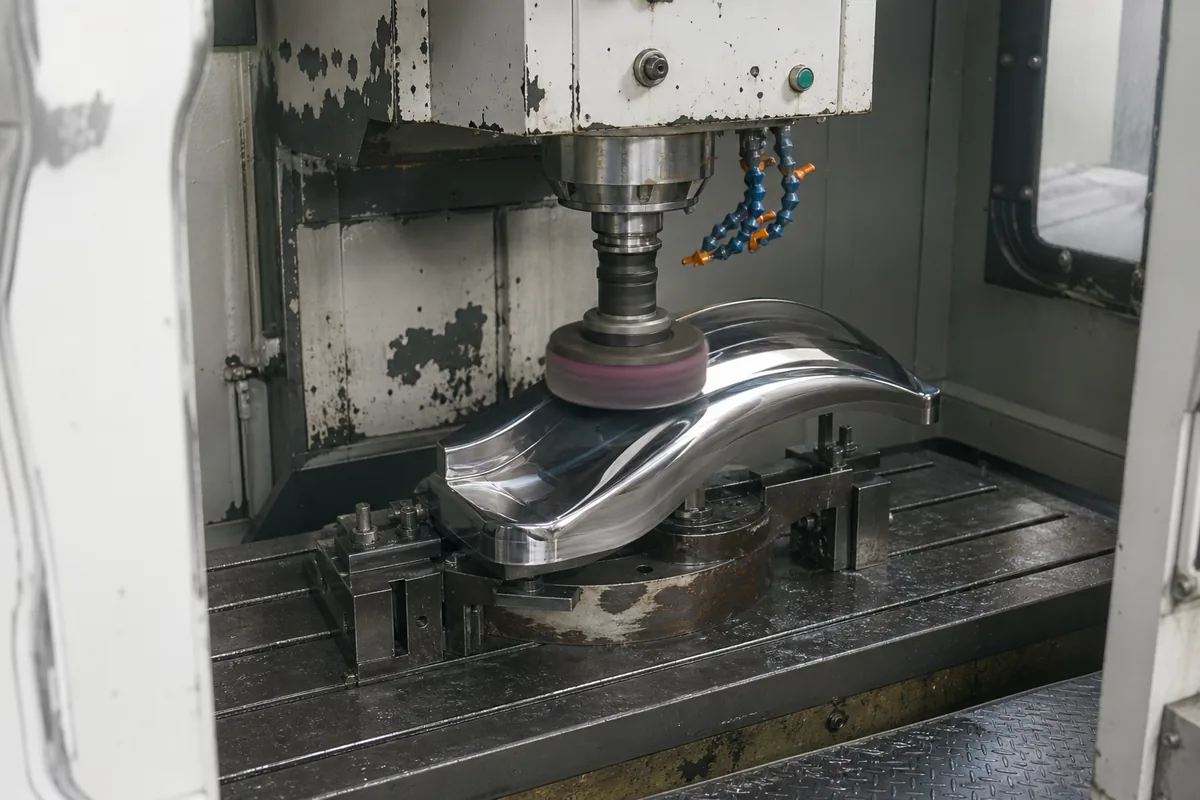

CNC Polishing Nickel from VT machining delivers precision Nickel parts produced to your exact drawing. CNC polishing refines surfaces to a smooth, reflective finish for cosmetic and functional needs, and we tune every parameter to the behaviour of Nickel, which is corrosion and heat resistant.
CNC Polishing Capability for Nickel
- Mirror finish capable
- Ra to 0.05 µm
- Cosmetic & sealing faces
- Multi-stage abrasives
Nickel Material Data
| Density | 8.89 g/cm³ |
|---|---|
| Tensile strength | 460 MPa |
| Yield strength (0.2%) | 148 MPa |
| Hardness | 110 HB |
| Melting point | 1435–1446 °C |
| Thermal conductivity | 70 W/m·K |
| Thermal expansion | 13.3 ×10⁻⁶/K |
| Electrical conductivity | 23% |
| Machinability (C36000 = 100%) | 30% |
| Grades we run | Nickel 200, Nickel 201, Alloy 400, Alloy 600 |
Published typical values for Nickel 200. Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
Gummy and work-hardening at once. Sharp tools, positive rake, and a deliberate depth of cut that stays under the hardened skin from the previous pass.
How CNC Polishing Nickel Works
Abrasive media or tooling refine the Nickel surface in controlled stages, removing the previous step's marks until the target roughness and edge condition are reached.
Programming is driven directly by your 3D model or print. Work-holding, tool selection and the cutting strategy are planned around the critical features and the material before the first chip is cut. First-off inspection confirms the process is centred before production continues.
Achievable Tolerances for CNC Polishing Nickel
| Feature | Standard | Precision |
|---|---|---|
| Surface roughness | Ra 0.8 µm | Ra 0.05 µm |
| Edge break | 0.1–0.3 mm | 0.05 ±0.02 mm |
| Material removed | 0.02 mm | 0.005 mm |
| Bore roundness after honing | 0.005 mm | 0.002 mm |
| Cross-hatch angle | 45° ±10° | 45° ±5° |
| Cosmetic grade | uniform satin | mirror, no visible lines |
| Masking of datum faces | on request | standard |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
CNC Polishing Tolerances & Surface Finish
Finishing brings Nickel to a defined roughness target — from a uniform satin to Ra values as low as 0.05 µm — with controlled, repeatable edge breaks.
Exact achievable figures depend on the alloy, the feature size and the part geometry. Tell us which dimensions are critical and we will advise feasibility up front.
Secondary Operations & Finishing
Finished Nickel parts can move straight into secondary operations under one roof. Typical add-ons are deburring, passivation, anodising, plating, blasting, polishing and laser marking. We coordinate the whole chain so you receive complete, inspection-ready parts.
Working with Nickel
As a material, Nickel is corrosion and heat resistant. Our setup reflects the alloy's machinability so the finished part is accurate and free of avoidable defects.
We verify the exact grade and condition before machining, and traceable mill certs are available on request. We can work to your nominated material source or specification when required.
Design Tips for CNC Polishing Nickel
We are happy to suggest design tweaks that improve manufacturability. Telling us the target Ra, the cosmetic faces and any masking needs lets us finish Nickel efficiently without over-processing. If you send your model early, we will return practical DFM feedback before you commit to production.
CNC Polishing Quality & Inspection
We control quality throughout the process, not just at the end. In-process checks plus final inspection — including CMM where specified — keep every Nickel part to print. Inspection reports, material certificates and first-article documentation can be supplied on request.
Applications of CNC Polishing Nickel
Customers order CNC Polishing Nickel components for everything from instrumentation to structural and functional assemblies. Whether you need a single prototype or recurring production volume, the same process discipline applies.
How to Order CNC Polishing Nickel
Getting a quote is simple. Share your model, the material grade, your quantity and target tolerances. You receive a clear quotation with lead time and honest manufacturability feedback.
Parts We Have Run in Nickel
Three representative CNC Polishing Nickel jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Deburred stamping
- Material
- Nickel
- Size
- 40 × 25 × 1 mm
- Key callouts
- Edge break 0.05–0.15 mm, no sharp edges
- Batch
- 30,000 pcs
Vibratory finished in media sized to reach every internal cutout.
Cosmetic housing
- Material
- Nickel
- Size
- 150 × 90 mm visible face
- Key callouts
- Uniform satin, no directional lines
- Batch
- 2,500 pcs
Grained in one direction with datum faces masked so they keep their tolerance.
Sealing face
- Material
- Nickel
- Size
- Ø60 mm face
- Key callouts
- Ra 0.2 µm, flatness 0.005 mm
- Batch
- 1,000 pcs
Lapped after grinding; the seal spec is a roughness number, not a dimension.
Finishing Options for Nickel
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Polishing Nickel
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Nickel grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Polishing
Other Processes for Nickel
Send the drawing, the Nickel grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
Can VT machining make custom Nickel parts to my drawing?
Yes. Nickel Nickel finishing is made to order from your CAD/2D drawing. Share your geometry, material grade, tolerance and quantity and we will confirm feasibility, lead time and pricing.
How clean are the edges produced by CNC Polishing on Nickel?
Our deburring leaves Nickel with a consistent, controlled edge break and burr-free surfaces.
What is CNC Polishing Nickel and how is it done?
CNC Polishing Nickel refers to cNC polishing refines surfaces to a smooth, reflective finish for cosmetic and functional needs. Applied to Nickel — corrosion and heat resistant — VT machining produces each part to your CAD drawing, selecting parameters from your tolerance, finish and quantity requirements.
What surface finish is achievable on Nickel with CNC Polishing?
Our finishing processes refine Nickel surfaces to Ra values as low as 0.05 µm for cosmetic or sealing faces.
Does CNC Polishing Nickel require dedicated tooling?
Most Nickel finishing work uses standard cutting tools and CNC programs; dedicated fixtures are made only when geometry or volume requires them.
