Looking for reliable CNC Boring Alloy Steel? VT machining manufactures Alloy Steel parts to tight tolerances and consistent quality. Alloy Steel is high strength and hardenability for demanding parts, so the process is set up specifically for the material.
CNC Boring Capability for Alloy Steel
- Bore tolerance to IT6
- Roundness within 0.005 mm
- Fine boring heads
- Large-diameter capability
Alloy Steel Material Data
| Density | 7.85 g/cm³ |
|---|---|
| Tensile strength | 655–1020 MPa |
| Yield strength (0.2%) | 415–900 MPa |
| Hardness | 197–302 HB |
| Melting point | 1416 °C |
| Thermal conductivity | 42.6 W/m·K |
| Thermal expansion | 12.3 ×10⁻⁶/K |
| Electrical conductivity | 8% |
| Machinability (C36000 = 100%) | 65% (annealed) |
| Grades we run | 4140, 4340, 8620, 20CrMnTi, 42CrMo4, 20MnCr5 |
Published typical values for 4140 (Q&T). Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
Heat treatment moves the part. Anything held tighter than ±0.02 mm is machined soft, hardened, then ground or hard-turned to final size.
How CNC Boring Alloy Steel Works

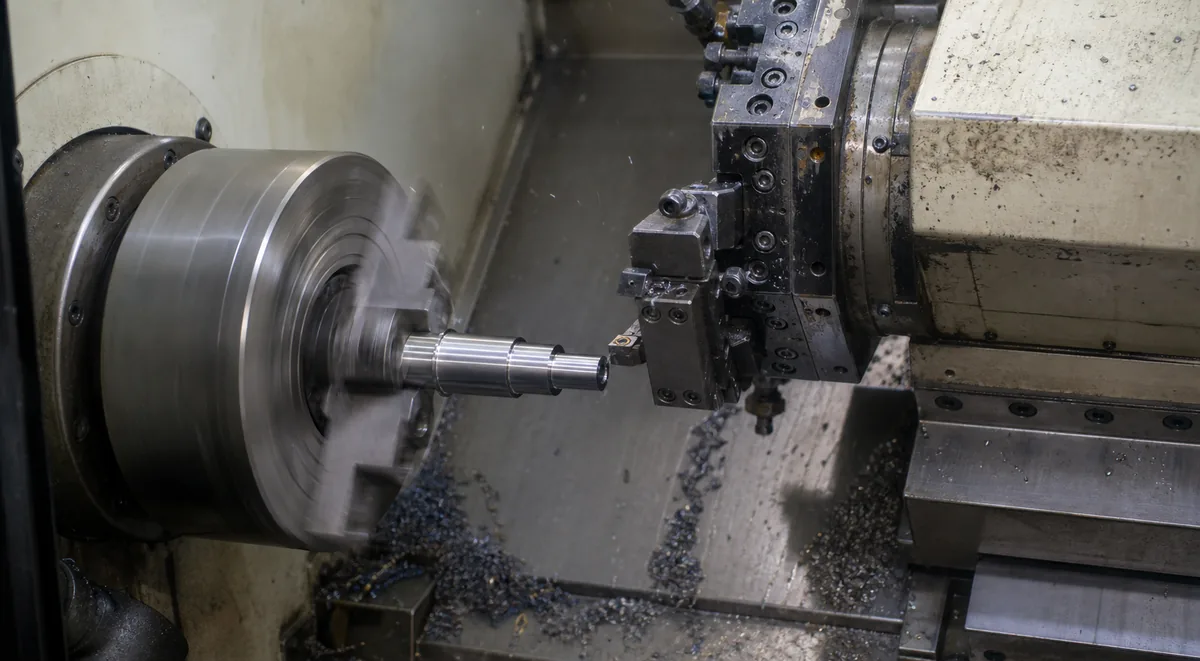

The Alloy Steel bar or billet rotates in the spindle while single-point tools shape outer diameters, bores, faces, grooves and threads. Constant surface speed control keeps cutting conditions stable from large to small diameters.
Every job begins from your CAD model or 2D drawing. Fixturing and tool paths are planned so the most critical dimensions are produced in the most rigid, repeatable setup. Critical dimensions are checked on the first part and monitored through the run.
Achievable Tolerances for CNC Boring Alloy Steel
| Feature | Standard | Precision |
|---|---|---|
| Outside diameter | ±0.05 mm | ±0.005 mm |
| Bore diameter | H9 | H6 |
| Length / shoulder position | ±0.10 mm | ±0.020 mm |
| Concentricity OD to ID | 0.05 mm TIR | 0.010 mm TIR |
| Roundness | 0.02 mm | 0.005 mm |
| Thread class | 6g / 2A | 4h / 3A |
| Surface finish, as turned | Ra 1.6 µm | Ra 0.4 µm |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
CNC Boring Tolerances & Surface Finish
Turned Alloy Steel holds diameter tolerances to about ±0.005 mm with concentricity within 0.01 mm and good roundness. Turned finishes of Ra 0.4–0.8 µm are achievable with finishing passes and sharp tooling.
Final tolerances are governed by the material's behaviour, wall thickness and overall stiffness. We give honest DFM feedback if a callout would be costly or better achieved another way.
CNC Boring Quality & Inspection
Consistent quality comes from disciplined process control. Critical dimensions on Alloy Steel parts are checked in-process and verified at final inspection using calibrated instruments and, where required, CMM measurement. Full documentation — dimensional reports, mill certs, FAIR — is available when your programme needs it.
Secondary Operations & Finishing
We complete Alloy Steel components with the secondary steps your drawing calls for. We arrange heat treatment, surface treatment, marking and assembly as needed. Tell us the final spec and we will plan the full route so parts arrive ready to use.
Design Tips for CNC Boring Alloy Steel
A few design choices make a real difference to cost and quality. Consistent diameters, standard thread forms and avoiding extremely long, slender features help Alloy Steel turned parts stay concentric and economical. If you send your model early, we will return practical DFM feedback before you commit to production.
Working with Alloy Steel
Alloy Steel offers a useful combination of properties: it is high strength and hardenability for demanding parts. Those characteristics shape how we approach turning — from tool and parameter selection to work-holding and coolant.
If your application is sensitive to alloy condition, we agree the specification in writing and document it. Stock is sourced from reputable suppliers so what you order is what you receive.
Applications of CNC Boring Alloy Steel
CNC Boring of Alloy Steel supports parts across aerospace, medical, automotive, electronics, semiconductor, energy and general industrial sectors. We scale from one-off prototypes to ongoing production while holding the same quality.
How to Order CNC Boring Alloy Steel
Ordering Alloy Steel parts is straightforward. Provide the drawing, material, quantity and any certification needs. Our engineers reply — in English — with feasibility, pricing and a realistic lead time, usually within one business day.
Parts We Have Run in Alloy Steel
Three representative CNC Boring Alloy Steel jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Nozzle body
- Material
- Alloy Steel
- Size
- Ø12 × 46 mm
- Key callouts
- Ø0.6 mm orifice ±0.01 mm, internal taper 20°
- Batch
- 600 pcs
Orifice EDM-drilled after turning; a drill wanders at that diameter.
Bearing spacer
- Material
- Alloy Steel
- Size
- Ø35 / Ø22 × 9 mm
- Key callouts
- Thickness ±0.005 mm, parallelism 0.005 mm
- Batch
- 4,000 pcs
Turned then double-disc ground — thickness this tight is not a lathe job.
Valve seat
- Material
- Alloy Steel
- Size
- Ø28 × 14 mm
- Key callouts
- Seat angle 45° ±0.1°, roundness 0.005 mm, Ra 0.2 µm
- Batch
- 800 pcs
Seat finished with a single-point diamond pass, no interruption.
Finishing Options for Alloy Steel
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Through hardening | — | 30–55 HRC, ground afterwards for tight sizes |
| Case hardening (carburise) | 0.3–1.2 mm case | 58–62 HRC surface, tough core |
| Nitride | 0.1–0.5 mm | 900–1100 HV, minimal distortion |
| Black oxide | 1–2 µm | Cosmetic + light corrosion protection |
| Zinc / nickel plate | 5–25 µm | Corrosion protection |
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Boring Alloy Steel
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Alloy Steel grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Boring
Other Processes for Alloy Steel
Send the drawing, the Alloy Steel grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
What material thickness or size range suits CNC Boring Alloy Steel?
Turned Alloy Steel parts are produced from bar or chuck stock across a wide diameter range.
Can VT machining make custom Alloy Steel parts to my drawing?
Yes. Alloy Steel Alloy Steel turning is made to order from your CAD/2D drawing. Share your geometry, material grade, tolerance and quantity and we will confirm feasibility, lead time and pricing.
What tolerances can you hold for CNC Boring Alloy Steel?
Achievable tolerances for Alloy Steel turning depend on the alloy, geometry and feature size. Turning holds diameter tolerances to around ±0.005 mm with concentricity within 0.01 mm. Exact figures are confirmed against your drawing callouts.
Why is Alloy Steel a good choice for CNC Boring?
Alloy Steel is high strength and hardenability for demanding parts, which makes it well suited to CNC Boring. We tune the process to the alloy so the finished Alloy Steel turning part meets your dimensional and functional requirements.
Does CNC Boring Alloy Steel require dedicated tooling?
Most Alloy Steel turning work uses standard cutting tools and CNC programs; dedicated fixtures are made only when geometry or volume requires them.
How clean are the edges produced by CNC Boring on Alloy Steel?
Machined Alloy Steel edges are clean and to specification; edge-break or deburring is added when your drawing calls for it.
