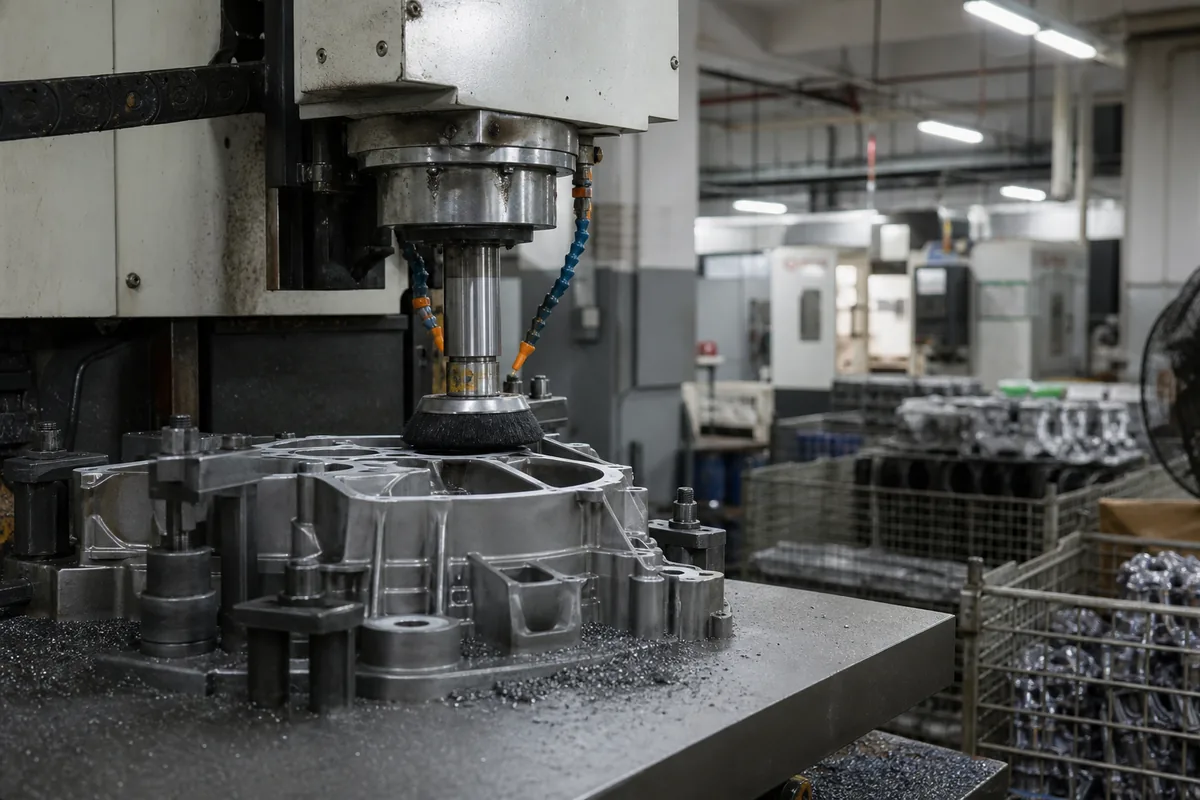

Looking for reliable CNC Deburring Nickel Silver? VT machining manufactures Nickel Silver parts to tight tolerances and consistent quality. Nickel Silver is corrosion resistant with a bright silver-white finish, so the process is set up specifically for the material.
CNC Deburring Capability for Nickel Silver
- Edge-break control
- Burr-free edges
- Consistent radius
- High-volume capable
Nickel Silver Material Data
| Density | 8.73 g/cm³ |
|---|---|
| Tensile strength | 390–710 MPa |
| Yield strength (0.2%) | 170–545 MPa |
| Hardness | 70–160 HV |
| Melting point | 1110 °C |
| Thermal conductivity | 33 W/m·K |
| Thermal expansion | 16.2 ×10⁻⁶/K |
| Electrical conductivity | 6% |
| Machinability (C36000 = 100%) | 20–30% |
| Grades we run | C75200, C77000, C79200 free-cutting |
Published typical values for C75200 (65-18). Other grades in the family differ — the certificate supplied with your order carries the actual heat-lot figures.
It is bought for its colour as often as its properties, so cosmetic faces are masked through deburring and handled in gloves from the machine onward.
How CNC Deburring Nickel Silver Works
Abrasive media or tooling refine the Nickel Silver surface in controlled stages, removing the previous step's marks until the target roughness and edge condition are reached.
We start from your supplied geometry and tolerance scheme. The setup is designed to minimise re-clamping, which protects positional accuracy across features. A first article is verified against the drawing before the balance of the batch is released.
Achievable Tolerances for CNC Deburring Nickel Silver
| Feature | Standard | Precision |
|---|---|---|
| Surface roughness | Ra 0.8 µm | Ra 0.05 µm |
| Edge break | 0.1–0.3 mm | 0.05 ±0.02 mm |
| Material removed | 0.02 mm | 0.005 mm |
| Bore roundness after honing | 0.005 mm | 0.002 mm |
| Cross-hatch angle | 45° ±10° | 45° ±5° |
| Cosmetic grade | uniform satin | mirror, no visible lines |
| Masking of datum faces | on request | standard |
Standard is what a normal quotation assumes. Precision is available on nominated features and is priced separately, because it needs extra setups, in-process gauging and CMM verification. Call out only the features that need it — blanket-tightening a drawing is the single most common reason a quote comes back expensive.
Secondary Operations & Finishing
Most Nickel Silver parts need some finishing, which we manage in-house or through vetted partners. Options include deburring and edge-breaking, heat treatment, surface grinding, polishing, and plating or anodising for corrosion resistance and appearance. Give us the finished-part requirement and we will sequence every operation correctly.
Working with Nickel Silver
Nickel Silver is corrosion resistant with a bright silver-white finish. We translate those properties into a process plan: the right tooling, speeds, feeds and fixturing for the alloy.
Where the grade, temper or heat-treat condition matters to performance, we confirm it with you and can supply material certificates. Material is procured to recognised standards for consistent, repeatable results.
CNC Deburring Quality & Inspection
Quality is built in, not inspected on. We monitor key features during the run and confirm them at final inspection, with CMM verification available for tight tolerances. We provide the inspection and traceability records your quality system requires.
CNC Deburring Tolerances & Surface Finish
Finishing brings Nickel Silver to a defined roughness target — from a uniform satin to Ra values as low as 0.05 µm — with controlled, repeatable edge breaks.
The tightest tolerances are reserved for the features your drawing flags as critical. Share your tolerance scheme and we will confirm what is realistic before quoting.
Design Tips for CNC Deburring Nickel Silver
Small design adjustments often cut cost and lead time. Telling us the target Ra, the cosmetic faces and any masking needs lets us finish Nickel Silver efficiently without over-processing. If you send your model early, we will return practical DFM feedback before you commit to production.
Applications of CNC Deburring Nickel Silver
Nickel Silver parts made this way are found throughout aerospace, medical, automotive, electronics and industrial equipment. Prototype, bridge and production volumes are all welcome.
How to Order CNC Deburring Nickel Silver
Starting your project takes one email. Send your CAD or 2D drawing, the Nickel Silver grade and condition, the quantity and any finish or inspection requirements. We respond quickly with price, lead time and any DFM notes, in clear English.
Parts We Have Run in Nickel Silver
Three representative CNC Deburring Nickel Silver jobs, with the callouts that actually drove the process plan. Yours will differ — these are here so you can judge whether your part is in our range before you spend time on an RFQ.
Cosmetic housing
- Material
- Nickel Silver
- Size
- 150 × 90 mm visible face
- Key callouts
- Uniform satin, no directional lines
- Batch
- 2,500 pcs
Grained in one direction with datum faces masked so they keep their tolerance.
Deburred stamping
- Material
- Nickel Silver
- Size
- 40 × 25 × 1 mm
- Key callouts
- Edge break 0.05–0.15 mm, no sharp edges
- Batch
- 30,000 pcs
Vibratory finished in media sized to reach every internal cutout.
Passivated stainless fitting
- Material
- Nickel Silver
- Size
- Ø18 × 40 mm
- Key callouts
- ASTM A967 citric passivation, no free iron
- Batch
- 5,000 pcs
Passivated after all machining, then tested with a copper sulphate check.
Finishing Options for Nickel Silver
| Finish | Thickness / effect | Why it gets specified |
|---|---|---|
| Deburr / edge break | 0.05–0.3 mm | All parts unless the drawing says otherwise |
| Bead blast | Ra 1.6–3.2 µm | Uniform matt finish, hides tool marks |
| Laser marking | — | Part number, lot code, data matrix |
No drawing yet? Build one in the browser.
Set the metal, dimensions and features, watch the 3D model update as you type, then switch to the 2D sheet to add dimensions and tolerances. Download it or send it straight to us with your RFQ.
What We Need to Quote CNC Deburring Nickel Silver
- GeometrySTEP or IGES for the 3D model, plus a PDF drawing if you have tolerance callouts. A dimensioned sketch is enough to start.
- MaterialThe exact Nickel Silver grade and condition — temper, heat-treat state or hardness. If you are not sure, tell us the function and we will suggest one.
- QuantityPrototype count and the expected annual volume. Both change how the part is made and therefore what it costs.
- TolerancesWhich features are critical. Everything else runs to our standard tolerance, which is what keeps the price sensible.
- FinishSurface treatment, cosmetic requirements, and any faces that must be masked.
- DocumentsWhether you need a material certificate, dimensional report, FAIR or PPAP with the shipment.
Missing something from the list is not a problem — send what you have. We will come back with the specific questions rather than a generic form.
Other Metals for CNC Deburring
Other Processes for Nickel Silver
Send the drawing, the Nickel Silver grade and the quantity. You get pricing, lead time and any DFM notes back — usually within one business day.
Request a QuoteFrequently Asked Questions
What surface finish is achievable on Nickel Silver with CNC Deburring?
Our finishing processes refine Nickel Silver surfaces to Ra values as low as 0.05 µm for cosmetic or sealing faces.
What tolerances can you hold for CNC Deburring Nickel Silver?
Achievable tolerances for Nickel Silver finishing depend on the alloy, geometry and feature size. We hold tight, repeatable tolerances appropriate to the feature and material. Exact figures are confirmed against your drawing callouts.
What is CNC Deburring Nickel Silver and how is it done?
CNC Deburring Nickel Silver refers to automated deburring removes sharp edges and burrs for safe handling and consistent edge quality. Applied to Nickel Silver — corrosion resistant with a bright silver-white finish — VT machining produces each part to your CAD drawing, selecting parameters from your tolerance, finish and quantity requirements.
Does CNC Deburring Nickel Silver require dedicated tooling?
Most Nickel Silver finishing work uses standard cutting tools and CNC programs; dedicated fixtures are made only when geometry or volume requires them.
