CNC Punching Stainless Steel

Overview of Stainless Steel Material

1. Introduction to the General Properties and Uses of Stainless Steel

Stainless steel, renowned for its corrosion resistance and durability, is widely utilized in various industries such as construction, automotive, and food processing. Its alloyed composition provides a balance of strength and corrosion resistance.

2. Different Types of Stainless Steel Alloys and Their Properties

• Austenitic Stainless Steel (e.g., 304, 316): Non-magnetic, excellent corrosion resistance.
  • Example: Commonly used in food processing equipment.
  • Properties: High ductility, formability, and resistance to acidic environments.
• Martensitic Stainless Steel (e.g., 410, 420): Hardenable by heat treatment.
  • Example: Used in cutlery, surgical instruments.
  • Properties: High hardness, moderate corrosion resistance.
• Duplex Stainless Steel (e.g., 2205): Combines austenitic and ferritic structures.
  • Example: Applications in chemical processing.
  • Properties: Improved strength and corrosion resistance.

CNC Punching Stainless Steel Basics

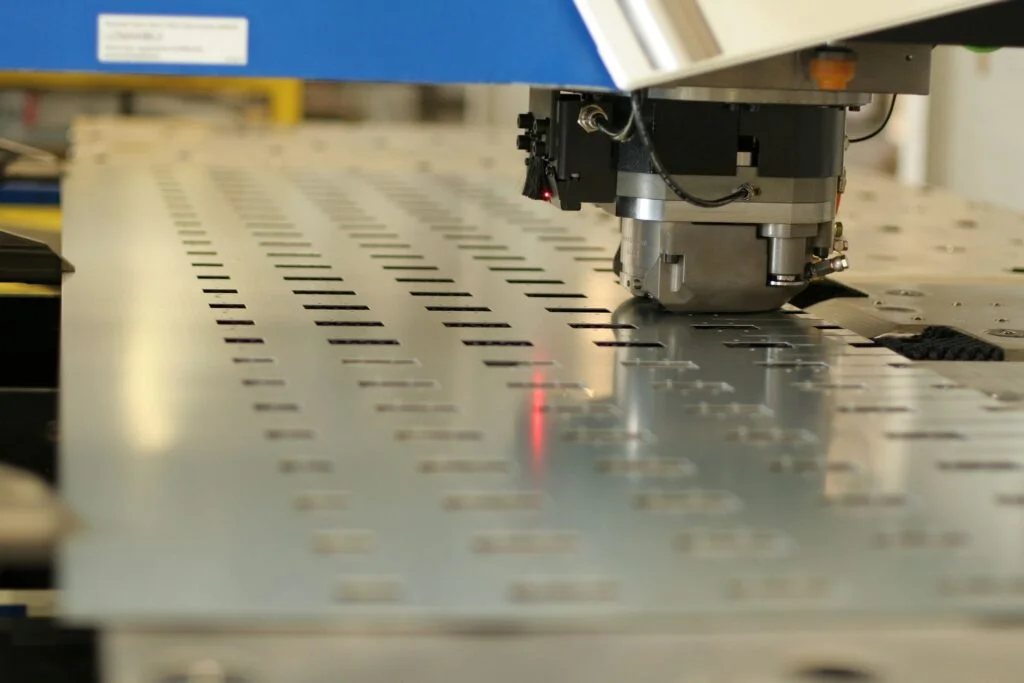

1. Basic Principle of CNC Punching

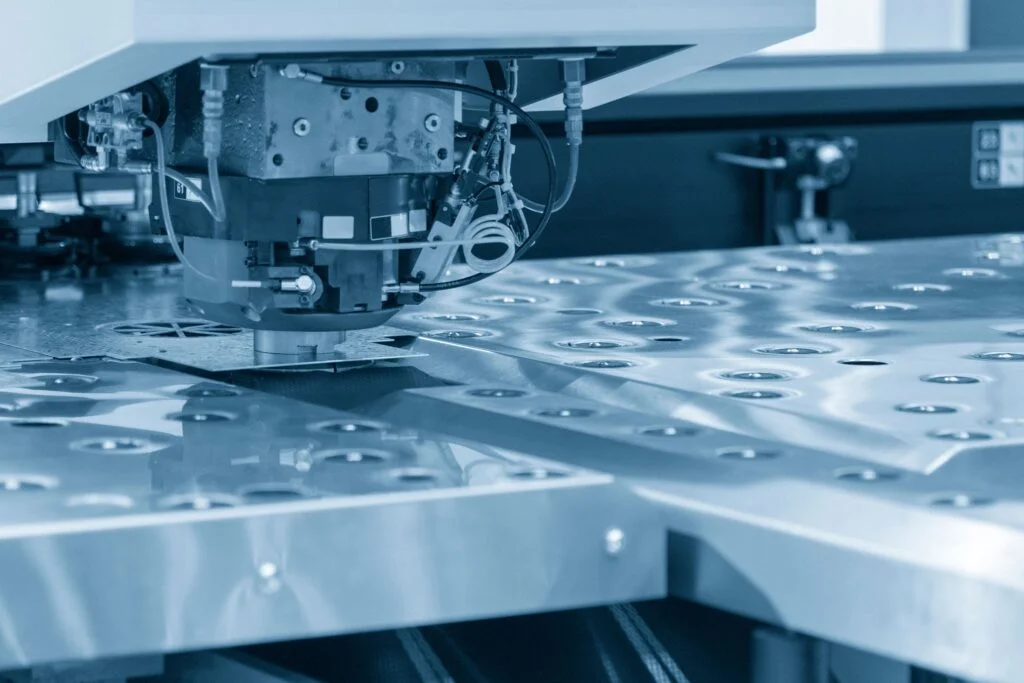

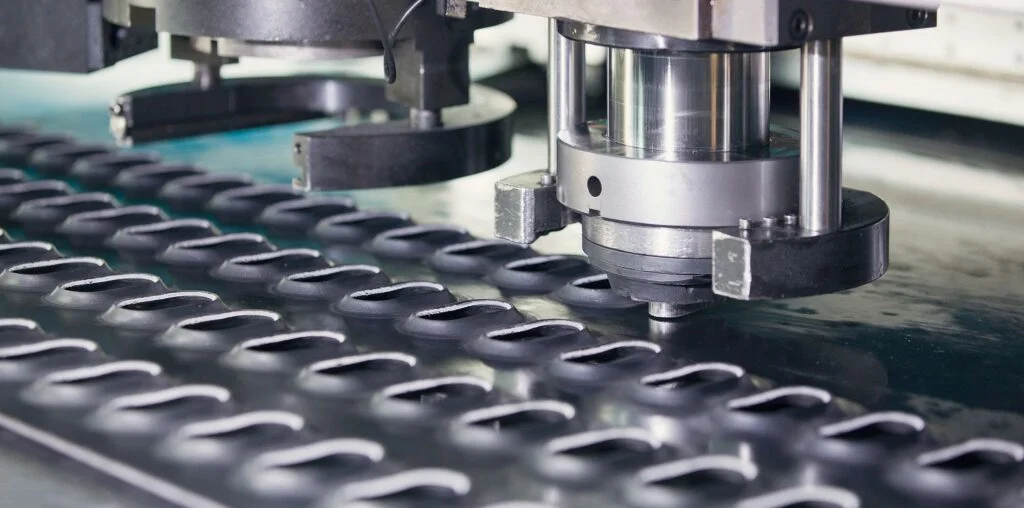

CNC punching involves using a punch and die to create holes and features in sheet metal. This process is efficient for mass production, allowing for the creation of complex geometries in stainless steel.

2. Composition and Function of CNC Punching Equipment

CNC punching equipment includes a punch press with a turret or tool magazine. The control system manages tool selection, positioning, and punching operations, ensuring precision in fabricating stainless steel components.

3. Basic Steps of Punching Process

• Sheet Loading: Securely fix the stainless steel sheet on the punching machine.
• Tool Selection: Choose appropriate punches and dies for desired features.
• Punching Operation: Execute the CNC program to punch holes and shapes in the stainless steel sheet.

CNC Punching Stainless Steel Tools and Equipment

1. Types and Characteristics of CNC Punching Machines

• Turret Punch Press: Equipped with a rotating turret holding multiple tools.
  • Example: CNC turret punch press with stainless steel-compatible features.
  • Characteristics: High-speed, versatile punching capabilities.
• Single-Station Punch Press: Suited for smaller production runs.
  • Example: CNC punch press with single-station capabilities.
  • Characteristics: Simplicity and flexibility in tool setup.

2. Different Types of Punching Tools

• Round Punches: Common for creating circular holes.
  • Example: Round punch for creating fastener holes in stainless steel.
  • Characteristics: Versatile for various hole sizes.
• Rectangular Punches: Used for creating slots and straight edges.
  • Example: Rectangular punch for slotting stainless steel sheets.
  • Characteristics: Ideal for creating elongated features.
• Embossing Tools: Add raised or recessed features.
  • Example: CNC embossing tool for branding stainless steel components.
  • Characteristics: Enhances aesthetic and functional properties.

3. Selection and Use of Punching Lubricants

• Dry Lubricants: Minimize friction during punching.
  • Example: Solid film lubricant for stainless steel punching.
  • Use: Reduces tool wear and improves surface finish.
• Wet Lubricants: Water-based lubricants for cooling.
  • Example: Water-soluble lubricant for efficient stainless steel punching.
  • Use: Prevents overheating during the punching process.

CNC Punching Stainless Steel Preparation before Machining

1. Sheet Fixing and Clamping Methods

• Vacuum Table: Securely holds thin stainless steel sheets.
  • Example: CNC punching machine with a vacuum table.
  • Method: Applies suction to hold the sheet in place.
• Clamps and Pins: Suitable for thicker stainless steel sheets.
  • Example: CNC punching machine with adjustable clamps.
  • Method: Secures the sheet using mechanical clamping.

2. CNC Program Writing and Debugging

• CAD/CAM Software: Design and program the punching operation.
  • Example: Use software like AutoCAD or SolidWorks.
  • Debugging: Simulate the program to verify toolpaths and hole locations.
• Toolpath Optimization: Ensure efficient tool movement.
  • Example: Optimize toolpaths to minimize travel distance.
  • Debugging: Verify and adjust toolpaths for accuracy.

3. Tool Selection and Setting

• Stainless Steel-Compatible Punches and Dies: Choose materials suitable for stainless steel.
  • Example: Carbide punches and dies for stainless steel punching.
  • Setting: Optimal clearance and alignment for efficient punching.
• Tool Rotation Control: Ensure correct tool positioning.
  • Example: CNC punch press with automatic tool rotation.
  • Setting: Program rotation angles for each tool.

CNC Punching Stainless Steel Punching Parameters and Techniques

1. Selection of Punching Speed, Feed Rate, and Clearance

• Punching Speed: Adjust based on stainless steel thickness.
  • Example: Higher speed for thin stainless steel sheets.
  • Solution: Optimize for material thickness to prevent distortion.
• Feed Rate: Determines punching efficiency.
  • Example: Higher feed for faster production.
  • Solution: Adjust for optimal efficiency without compromising accuracy.
• Clearance: Gap between punch and die.
  • Example: Larger clearance for thicker stainless steel.
  • Solution: Optimize clearance to prevent burrs and tool wear.

2. Punching Characteristics of Different Stainless Steel Alloys

• Austenitic Stainless Steel (e.g., 304): Soft and ductile.
  • Example: Higher punching speeds for efficiency.
  • Solution: Adjust parameters for softer alloys.
• Martensitic Stainless Steel (e.g., 410): Moderate hardness.
  • Example: Optimal feed rates for efficient punching.
  • Solution: Tailor parameters for alloy-specific properties.
• Duplex Stainless Steel (e.g., 2205): Higher strength and hardness.
  • Example: Slower punching speeds for precision.
  • Solution: Adjust parameters for harder alloys.

3. How to Avoid Punching Distortion and Burr Formation

• Fixture Design: Minimize unsupported areas during punching.
  • Example: Use backing plates for support.
  • Solution: Design fixtures to reduce distortion.
• Tool Sharpness: Regularly check and sharpen punching tools.
  • Example: Implement a tool maintenance schedule.
  • Solution: Ensure sharp tools for clean cuts and reduced burr formation.

CNC Punching Stainless Steel Common Problems and Solutions

1. Common Problems in CNC Punching Stainless Steel

• Burr Formation: Addressed through tool sharpness and clearance.
  • Example: Increase tool clearance for smoother edges.
  • Solution: Regularly inspect and sharpen tools.
• Distortion: Minimized through proper fixture design.
  • Example: Optimize fixture support for the stainless steel sheet.
  • Solution: Ensure even support to prevent distortion.
• Misalignment of Holes: Checked through accurate toolpath programming.
  • Example: Verify toolpaths in simulation software.
  • Solution: Debug and optimize toolpaths for precision.

2. Steps and Methods to Solve These Problems

• Regular Tool Maintenance: Sharpen and inspect punches and dies.
  • Example: Establish a routine for tool maintenance.
  • Solution: Replace or sharpen tools as needed.
• Optimized Fixture Design: Ensure proper support during punching.
  • Example: Use custom fixtures for different stainless steel parts.
  • Solution: Design fixtures to minimize distortion and misalignment.

Table for CNC Punching Stainless Steel Parameters

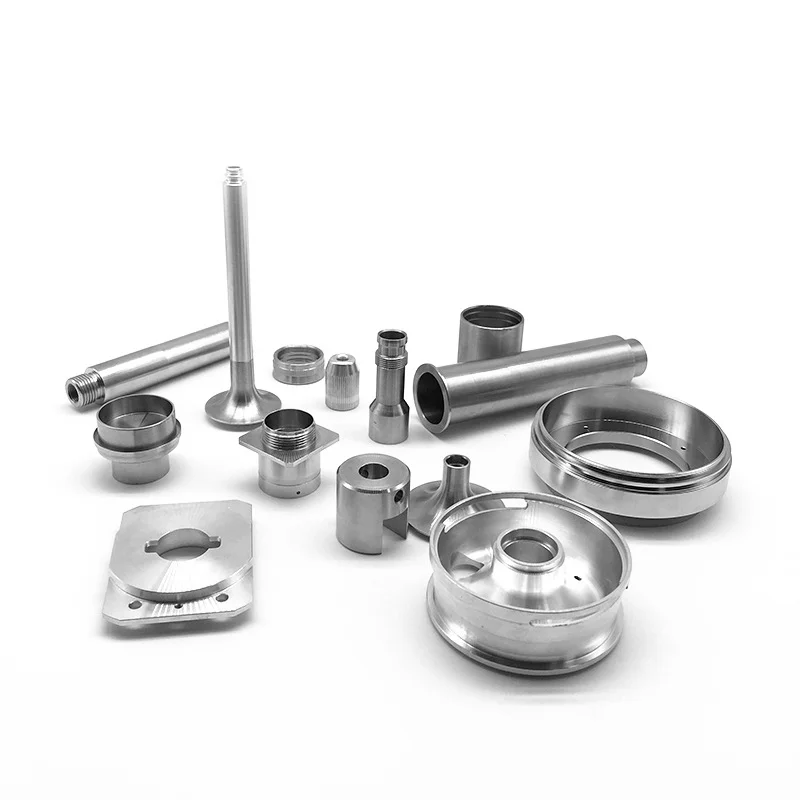

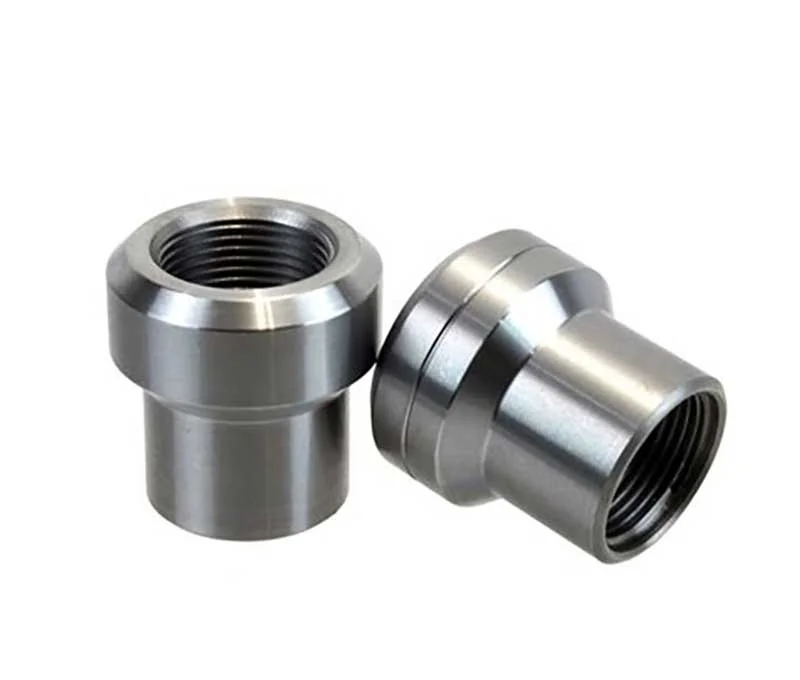

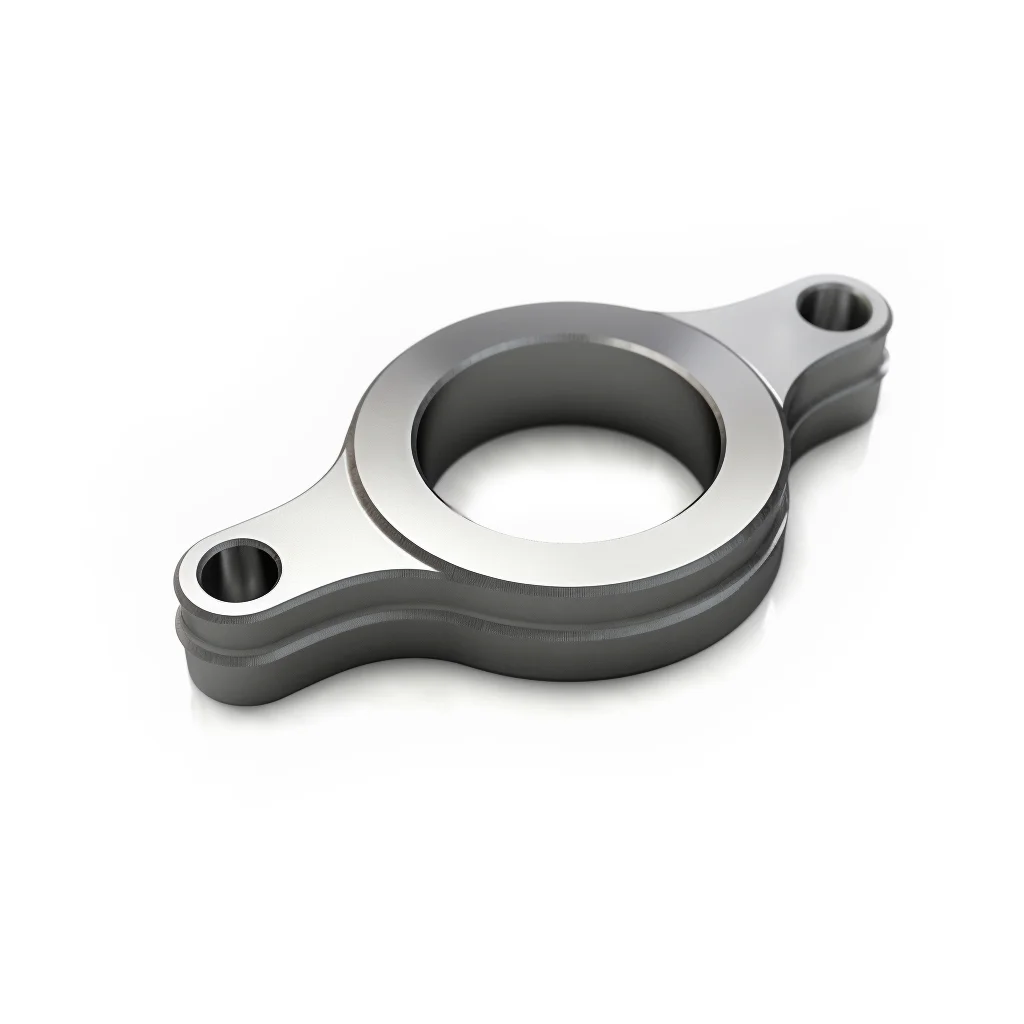

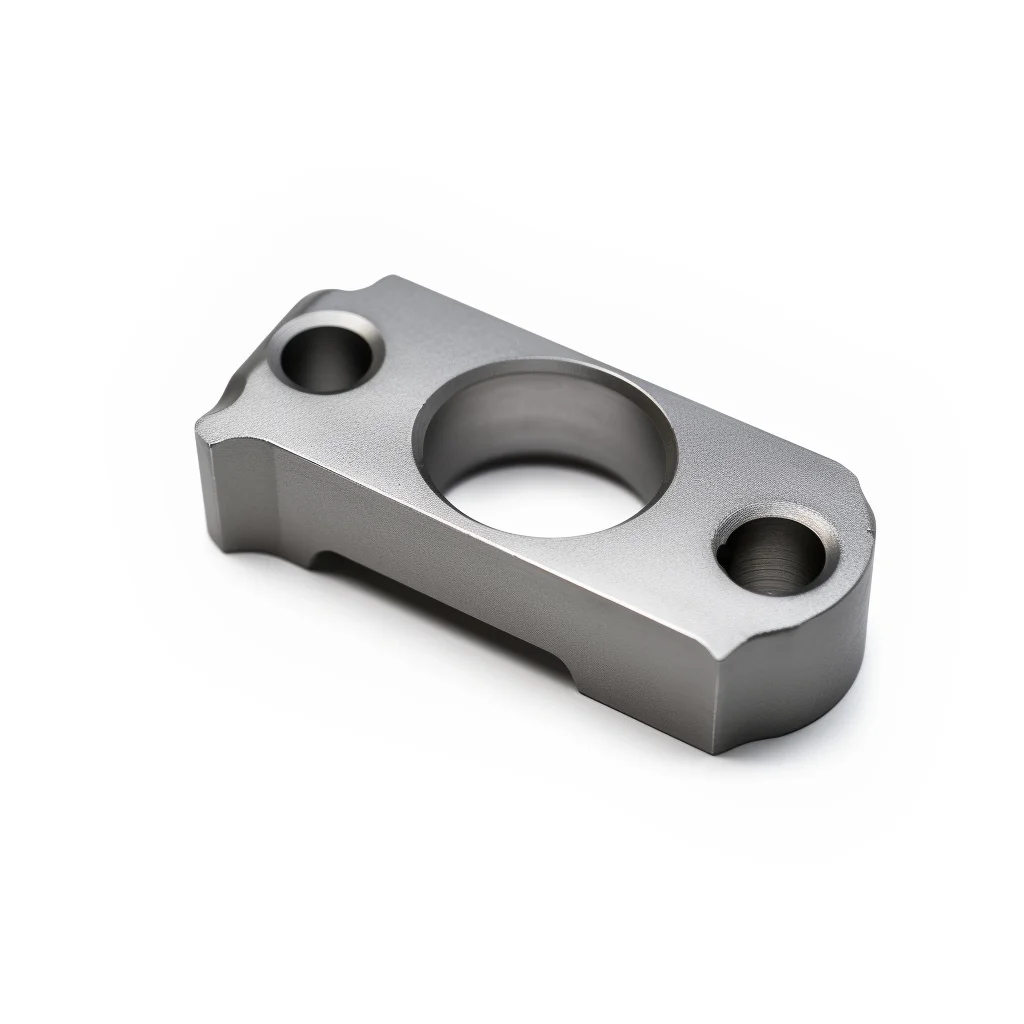

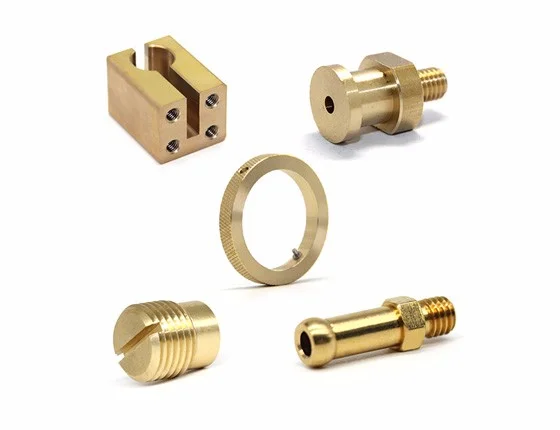

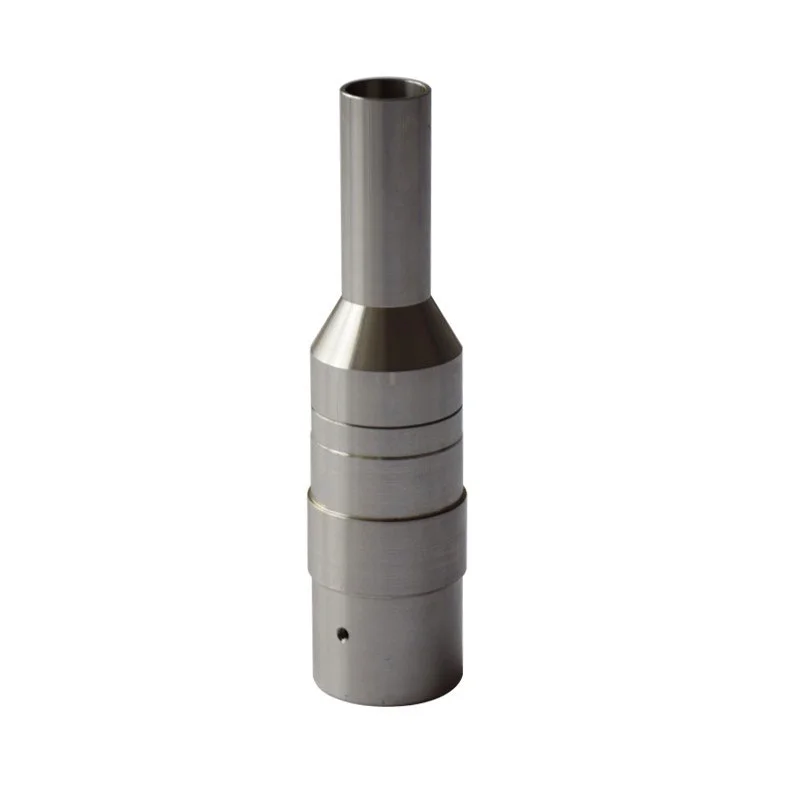

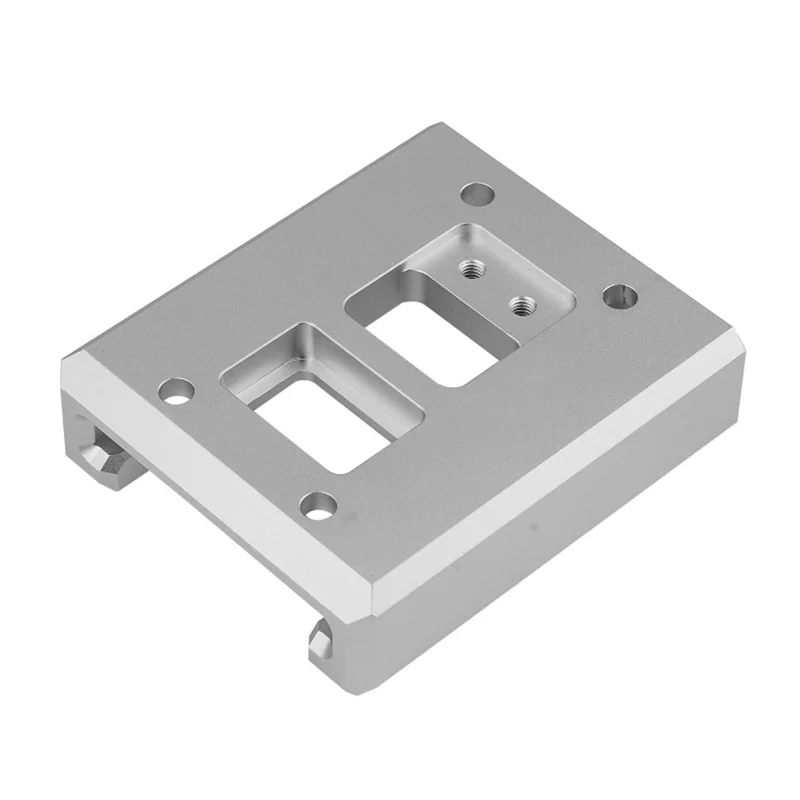

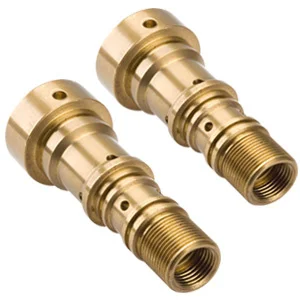

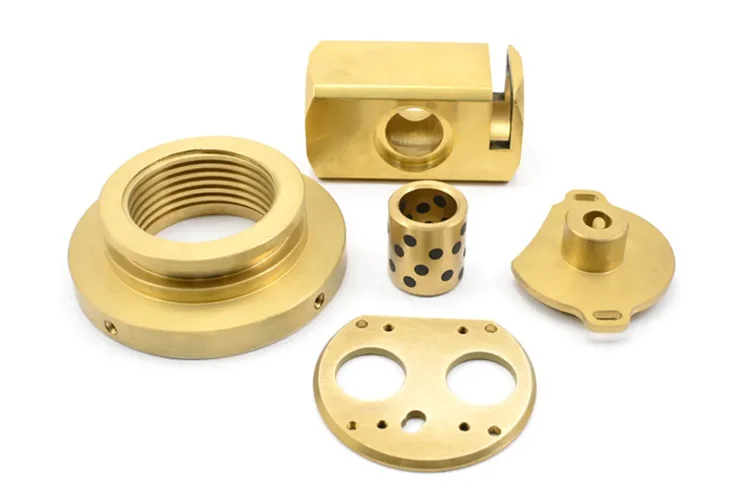

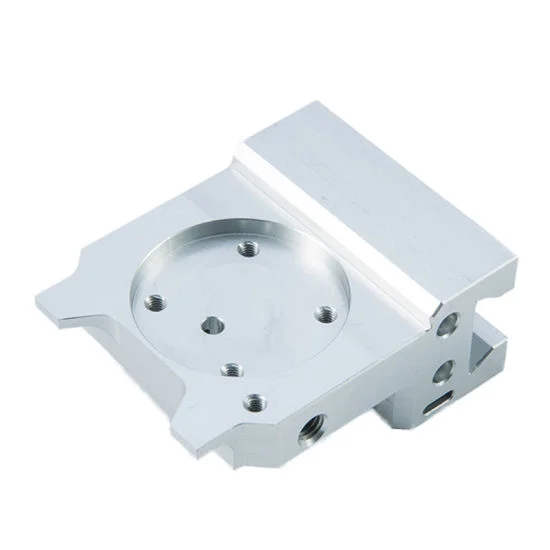

CNC Machining Samples
